I/O Terminal Module – GE Fanuc IC200CHS111

GE Fanuc IC200CHS111 Relay Base

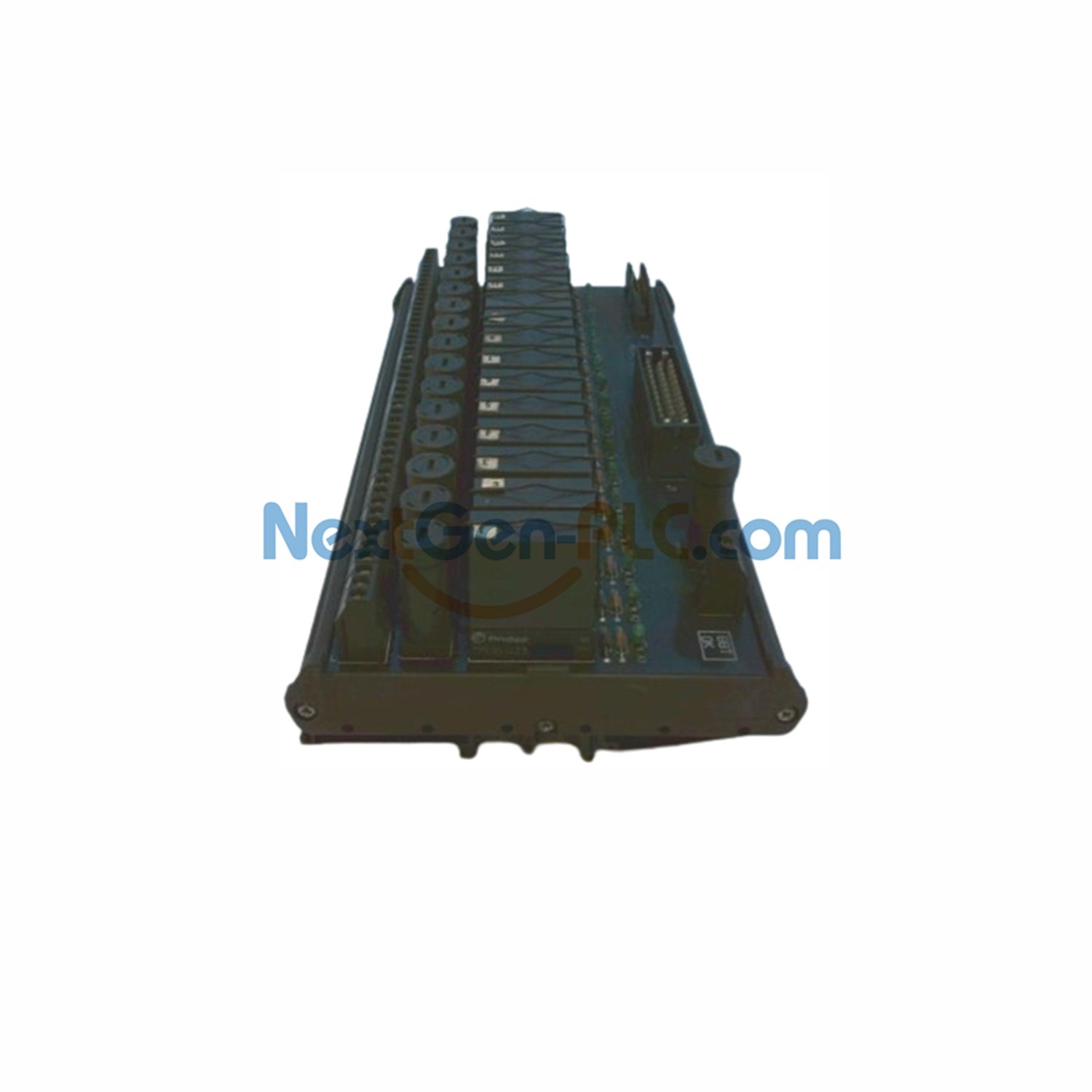

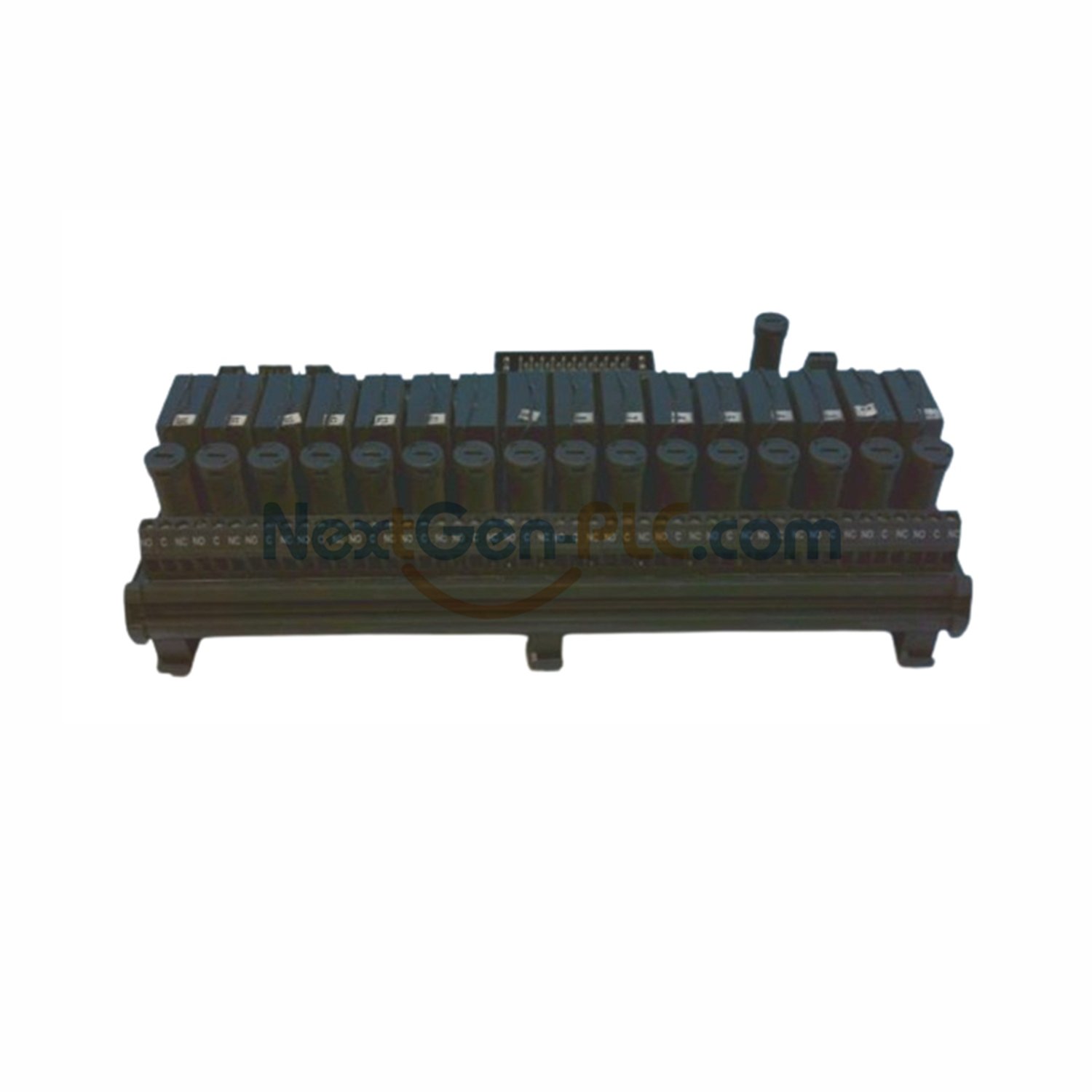

The IC200CHS111 is a relay-style main base. It works with IC200MDL740 and IC200MDL750 modules. Provides dry contact switching up to 8A.

Key Features

• 50 box-style terminals
• 8 amp relay capacity
• 24V DC relay power
• Individual relay fuses
• Status indicators
• Expandable system

Product Specifications

Power Requirements

Needs external 24V DC power. Connect to terminals A17 and A18. Powers relay coils. User loads need separate power.

Easy Expansion

J1 connector for carrier cable. J2 connector for expansion base. Works with IC200CHS112 expansion unit. Build larger systems easily.

Relay Details

Each relay has its own fuse. Relays can be replaced. Status lights show operation. Handles various load types.

Questions & Answers

What modules work with this base?

IC200MDL740 and IC200MDL750 modules. Made for 16-point systems.

How much current can it switch?

Up to 8 amps. Handles AC and DC loads.

Is external power needed?

Yes. 24V DC for relay coils. User loads need separate power.

In stock?

Yes. New IC200CHS111 available. Ships in 5 days.

Can I expand this system?

Yes. Use IC200CHS112 expansion base. Connect via J2 connector.
