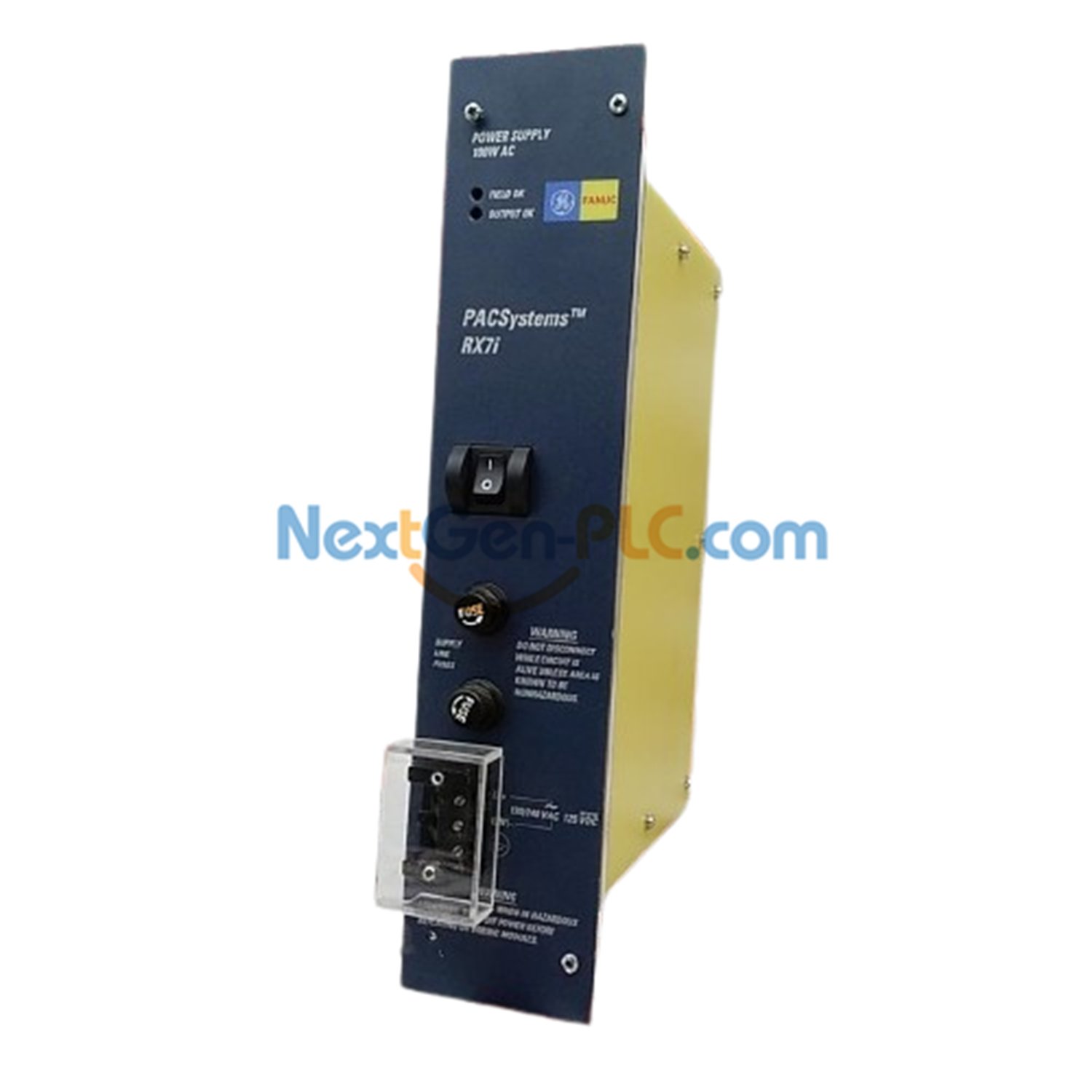

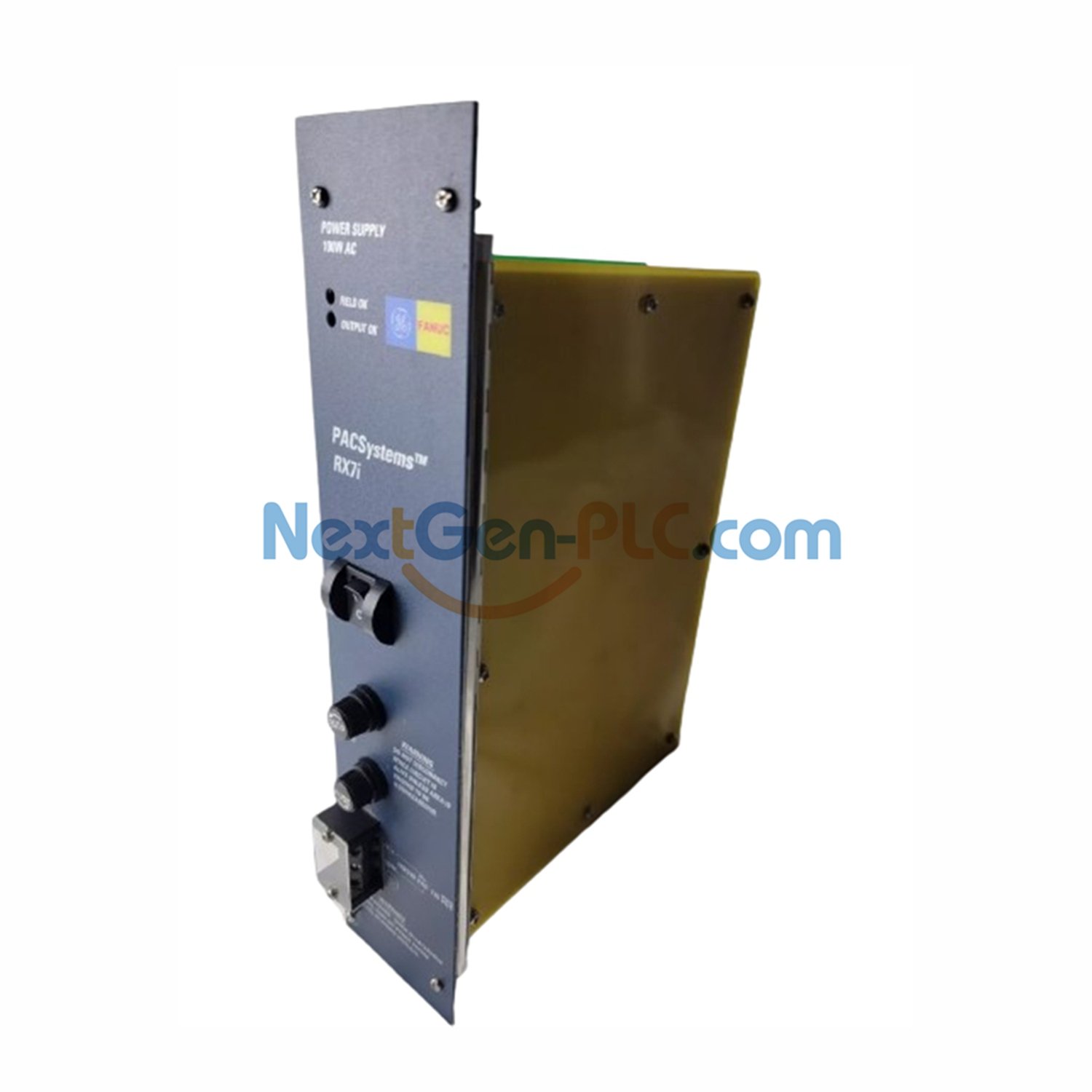

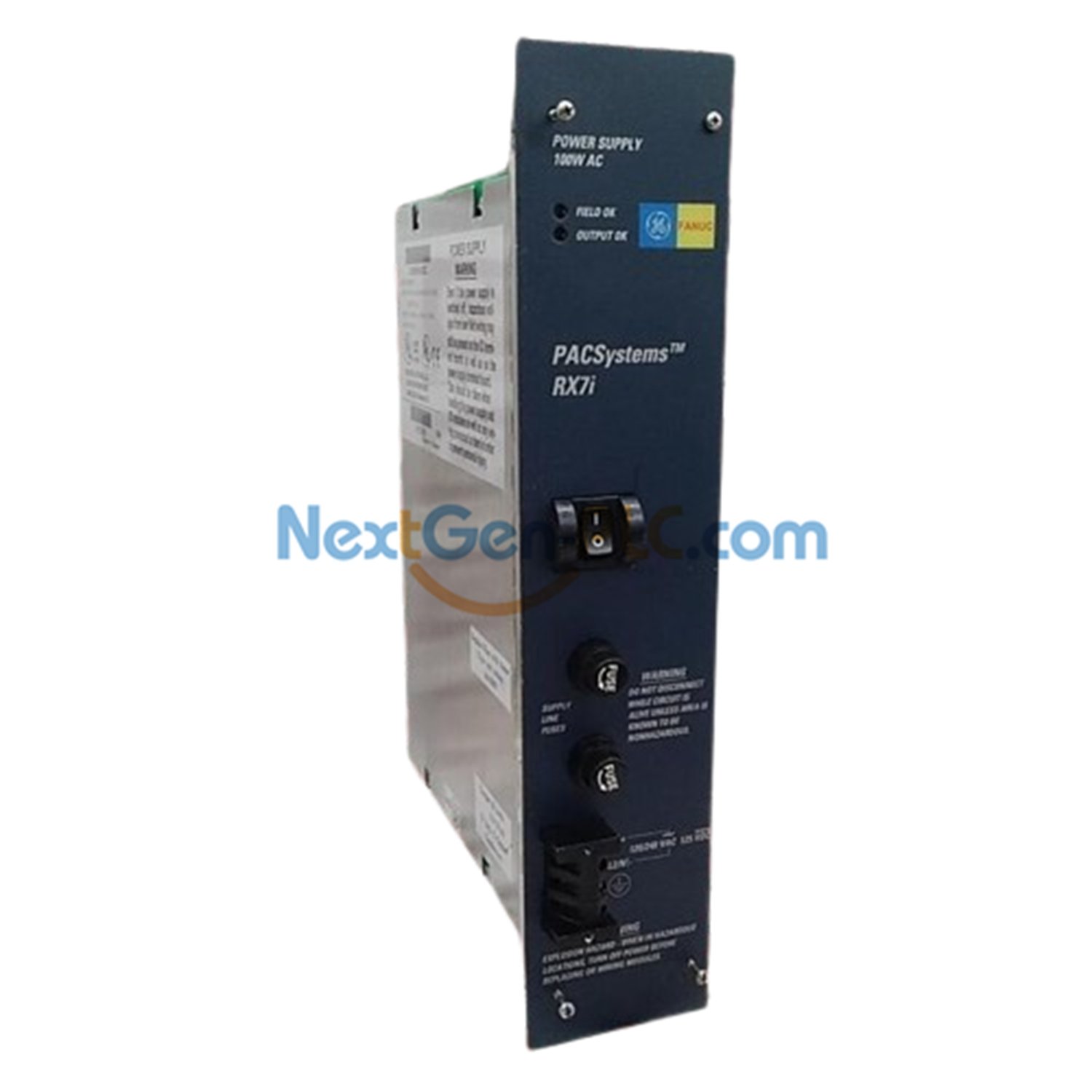

IC698PSA100 — Emerson PACSystem RX7i Power Supply
The IC698PSA100 is a compact power supply for the PACSystem RX7i. It installs in slot 0 and delivers three DC outputs for system modules.
Main Features
- Input range: 85–264 VAC or 100–150 VDC
- Nominal ratings: 120/240 VAC or 125 VDC
- Typical power: 125 W; Maximum: 150 W
- Outputs: +5.1 VDC, +12 VDC, −12 VDC
- LEDs show FIELD OK, OUTPUT OK, and OVER TEMP
- Front switch turns DC outputs on or off
Technical Details
| Parameter | Value |
|---|---|
| Model | IC698PSA100 |
| Series | PACSystem RX7i |
| Manufacturer | Emerson Automation (ex-GE Intelligent Platforms) |
| Input Voltage | 85–264 VAC or 100–150 VDC |
| Frequency | 47–63 Hz |
| Output Current | +5.1 VDC: 0–20 A; +12 VDC: 0–2 A; −12 VDC: 0–1 A |
| Total Output Power | 100 W |
| Power Factor | ≥0.99 |
| Ride-through | 15 ms |
| Hold-up Time | 5 ms |
| Isolation | 1500 VDC |
| Operating Temp | 0–60 °C |
| Mounting | Leftmost slot, rack position 0 |
| Wiring | Input: AWG #16 (1.3 mm²); Ground: AWG #12 (3.3 mm²) |
| Size | ~101.6 × 132.1 × 88.9 mm |
| Weight | ~0.68 kg |
Protection
- Overvoltage limit on all outputs
- Overcurrent trips at +5V, +12V, −12V rails
- Thermal shutdown when overheated
Why Use IC698PSA100
The IC698PSA100 powers PACSystem RX7i modules safely and reliably. It supports heavy +5V loads and provides extra ±12V rails for special modules. It is simple to install, monitor, and service.
FAQ
- Is the IC698PSA100 new?
- Yes, all units are brand new and original.
- Do you keep stock?
- Yes, we keep this model in stock for fast shipping.
- How fast is shipping?
- We ship within five days, usually with DHL or other major couriers.
- Can I return it?
- Yes, you can return within 30 days under our policy.
- What wires should I use?
- Use AWG #16 copper for input, AWG #12 copper for ground, rated 75 °C.
