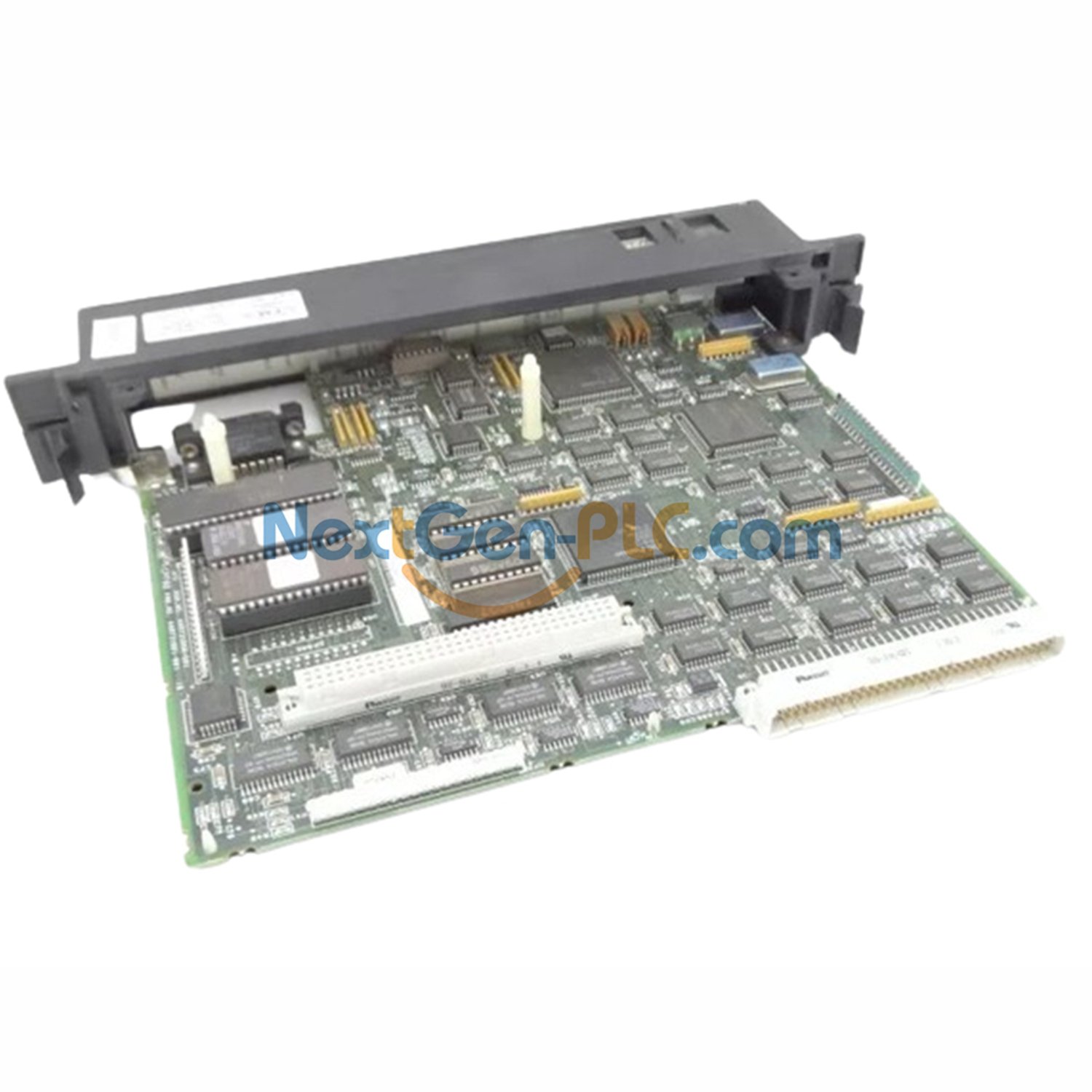

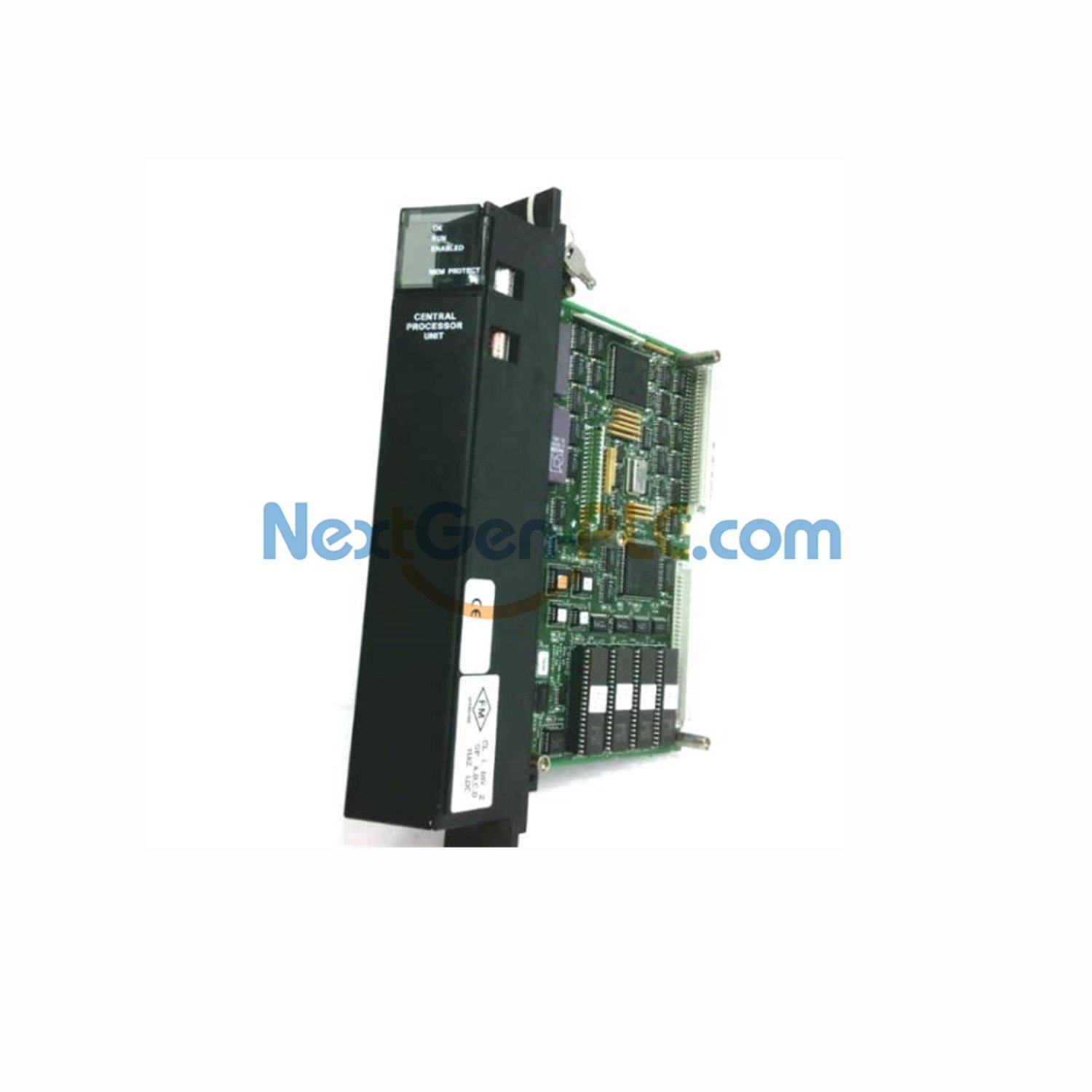

GE Fanuc IC697CPU771 – Series 90-70 CPU Module

Product Overview

The IC697CPU771 is a high-performance CPU module for Series 90-70 PLCs.

It features an embedded 80C186 processor running at 12 MHz.

Boolean execution time is 0.4 microseconds per instruction for fast logic processing.

The CPU supports up to 2 KB discrete I/O and 8 KB analog I/O memory.

Program and data memory expand up to 512 KB with optional expansion boards.

Technical Specifications

Brand: GE Fanuc

Series: Series 90-70

Part Number: IC697CPU771

Product Type: CPU Module

Compatible PLCs: GE Fanuc 90-70

Processor: 80C186 / 80C816DX

Clock Speed: 12 MHz

Discrete I/O Memory: 2 KB

Analog I/O Memory: 8 KB

Maximum RAM: 512 KB

Analog I/O Supported: 8000 points

Boolean Execution Speed: 0.4 μs

Serial Port: 1 (RS-485)
