GE Fanuc IC694MDL742 12/24 volt DC Output Module

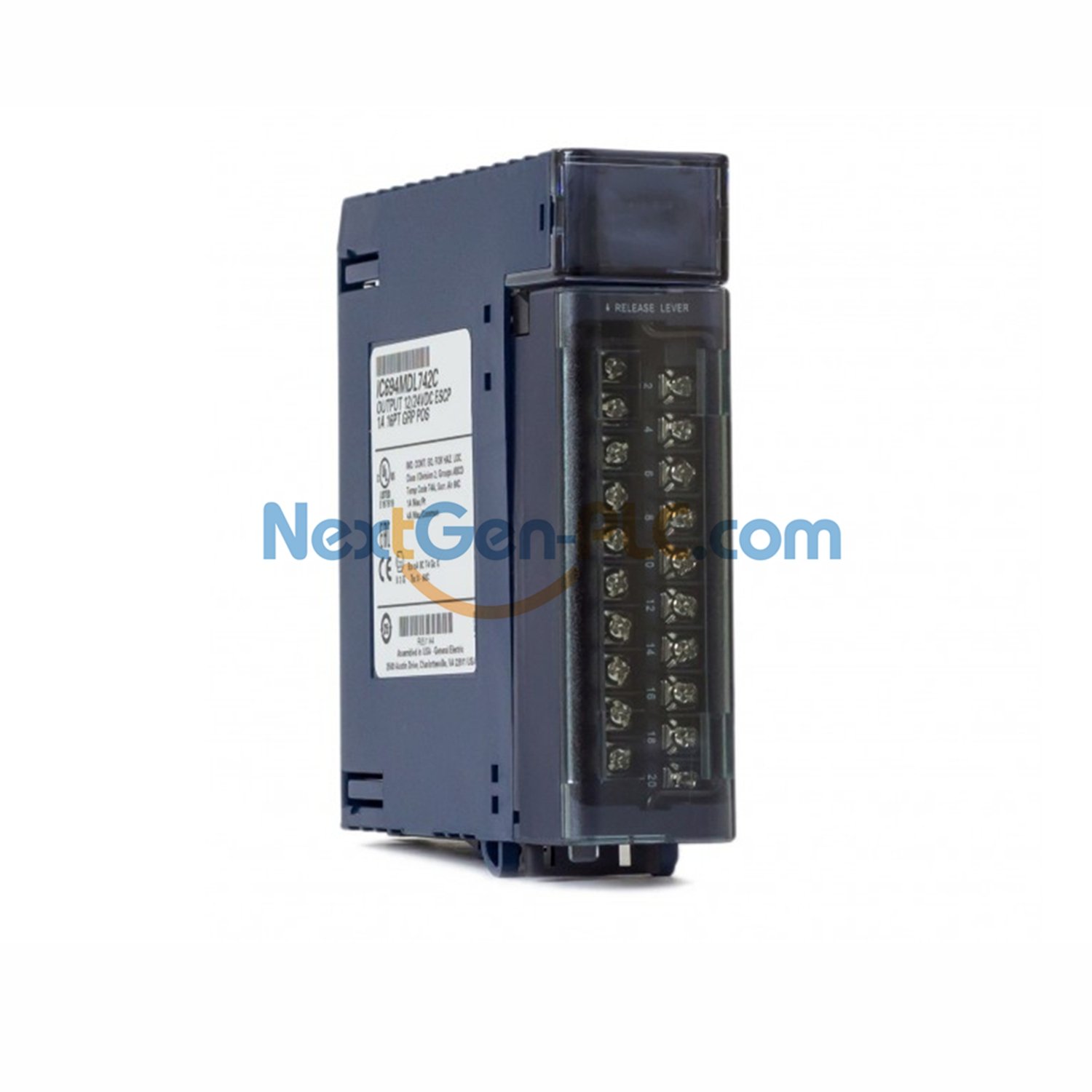

GE Fanuc IC694MDL742 16-Point Output Module

Reliable 16-output module for RX3i PLC racks. Designed for tough industrial use. Easy to install. Hot swap support for fast service.

Key technical parameters

Model: IC694MDL742

Outputs: 16 points arranged as 2 groups of 8

Rated input voltage: 12 to 24 V DC

Voltage tolerance: -15% to +20%

Max output current: 1 A per point

Group protection: electronic short-circuit protection per group

Isolation: 250 V AC continuous between channels and chassis

Power draw: 130 mA typical with all outputs on

Inrush: 5.2 A for 10 ms per module at switch-on

Response time: 0.5 ms typical from command to switch

Leakage current: <1 mA when off

Operating temperature: -20 to 60 °C

Storage temperature: -40 to 85 °C

Humidity: up to 95% non-condensing

Installation guide

Align module to the backplane slot and push until seated.

Tighten wiring screws. Use correct wire size for 1 A loads.

Apply DC power to external load supply.

Check LEDs. Fault LED will turn on if a short is detected.

Compatibility

Designed for RX3i PACSystem racks.

Supports hot insertion and removal.

Works with external DC load power.
