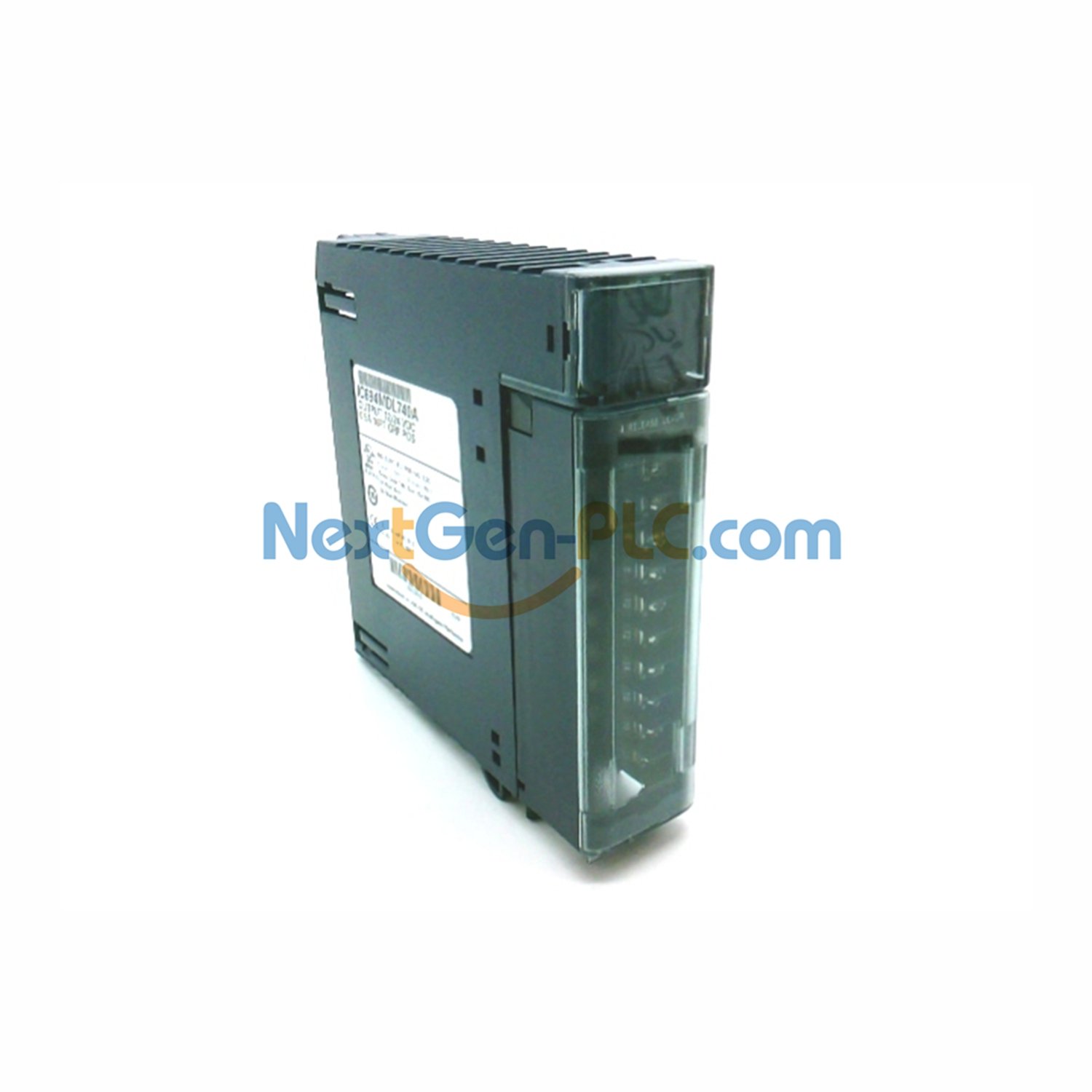

GE Fanuc IC694MDL740 RX3i 12/24 VDC Output Module

IC694MDL740 PACSystem RX3i 16-Point 12/24V DC Positive Output Module

Key technical data

Model: IC694MDL740

Output points: 16 (2 groups of 8)

Rated voltage: 12 / 24 V DC

Per point current: 0.5 A

Per group / module current: 2 A per common

Backplane draw: 110 mA (all outputs on)

Max inrush: 4.78 A for 10 ms

On / Off response: typical 2 ms, max 2 ms

Off-state leakage: ≤ 1 mA

Output voltage drop: ≤ 1.0 V

Extended technical parameters

Operating temperature range: -20 to 70 °C

Storage temperature: -40 to 85 °C

Relative humidity: 5 to 95 percent non condensing

EMC immunity: meets typical industrial immunity levels

Field wiring per channel: accepts 14 to 24 AWG

Typical switching cycles: designed for millions of operations in normal conditions

Suggested fuse per group: 2 A slow blow

Typical MTBF: high for industrial modules (value varies by site)

Technical summary table

Installation guide

Power down the rack before you install. Insert the module into an empty RX3i slot. Push until it seats. Tighten any locking clip if present. Wire field power to the module commons. Wire outputs to loads. Use recommended fuses on each group. Keep wiring neat. Test each output with a small load first. Do not hot-swap unless your system supports it.
