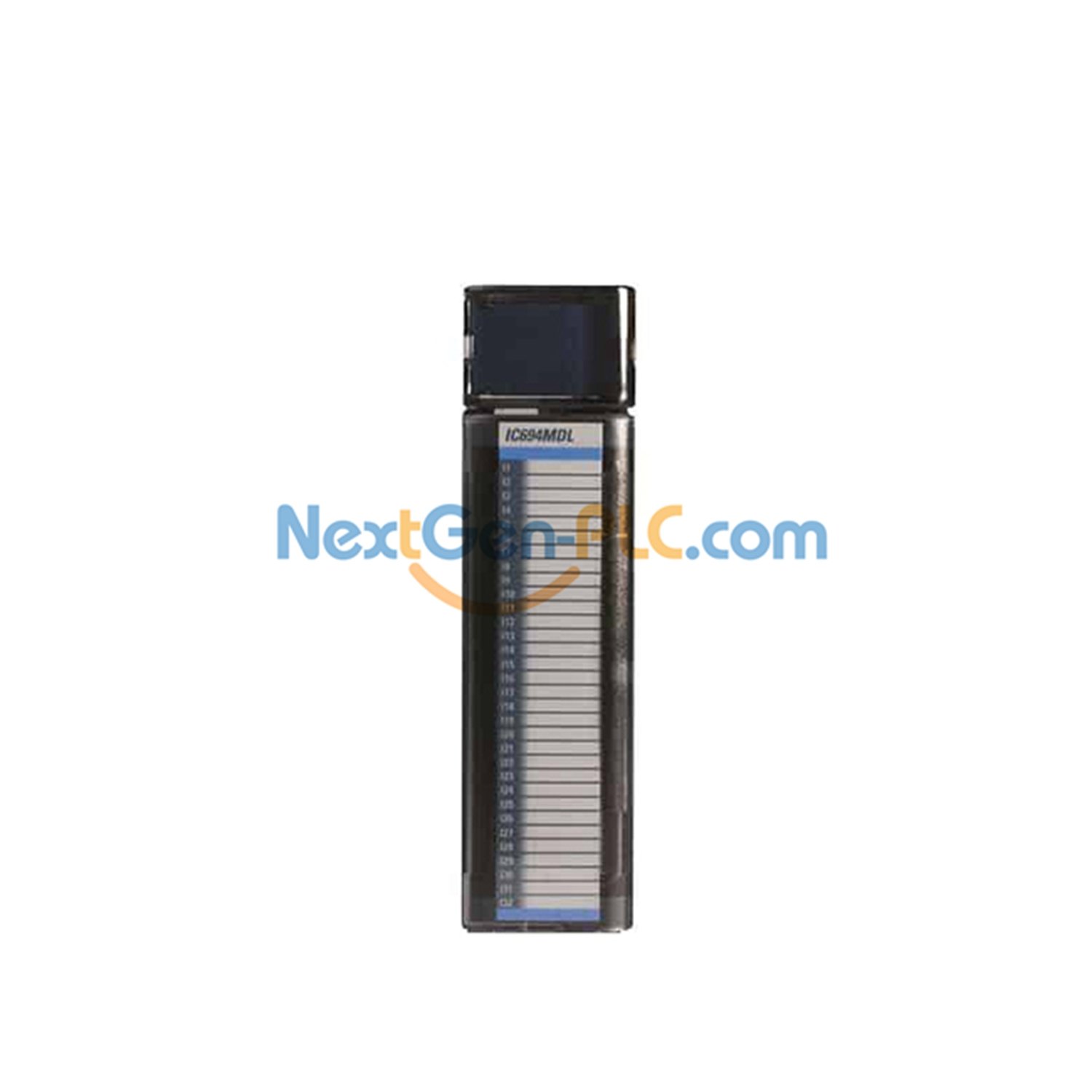

GE Fanuc IC694MDL330 — RX3i 8-Point AC Output Module

The IC694MDL330 fits any RX3i I/O slot.
It drives AC loads only.
It has 8 outputs in 2 groups of 4.
Shelf life before use: 1 year.

Key ratings

Rated voltage: 120–240 VAC.
Output per point: 2 A.
Line range: 85–264 VAC.
Frequency: 50 / 60 Hz.
Inrush: 20 A for one cycle.
Group fuses: 5 A per group.

Quick facts

Each output has an RC snubber.
Each output has a status LED.
Groups have separate commons.
You must supply AC power for loads.

New numeric details

Performance numbers

Max conductor to load: 30 m.
Typical off leakage: ≤ 5 mA.
Voltage drop at load: ≤ 2.0 V.
Turn-on time: ≤ 2 ms.
Turn-off: ≤ 1/2 AC cycle.

Environment & durability

Operating temp: 0°C to 60°C.
Storage temp: -40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Vibration and shock meet common IEC test levels.

Suffix options

IC694MDL330 — standard unit.
IC694MDL330-LT — low-temperature version.
IC694MDL330-CA — conformal-coated version.

Install notes

Mount on the RX3i backplane.
Use RX3i terminal blocks for AC wiring.
Follow the terminal torque and wire-size rules.
Replace group fuses with the correct 5 A type.

Short summary

The IC694MDL330 is a tough 8-point AC output module.
It works with 120–240 VAC systems.
Use LT or CA suffixes for special needs.
Shelf life: 1 year.
