GE Fanuc IC694DNM200 Communication Module

Emerson IC694DNM200 PACSystem RX3i DeviceNet Master Module

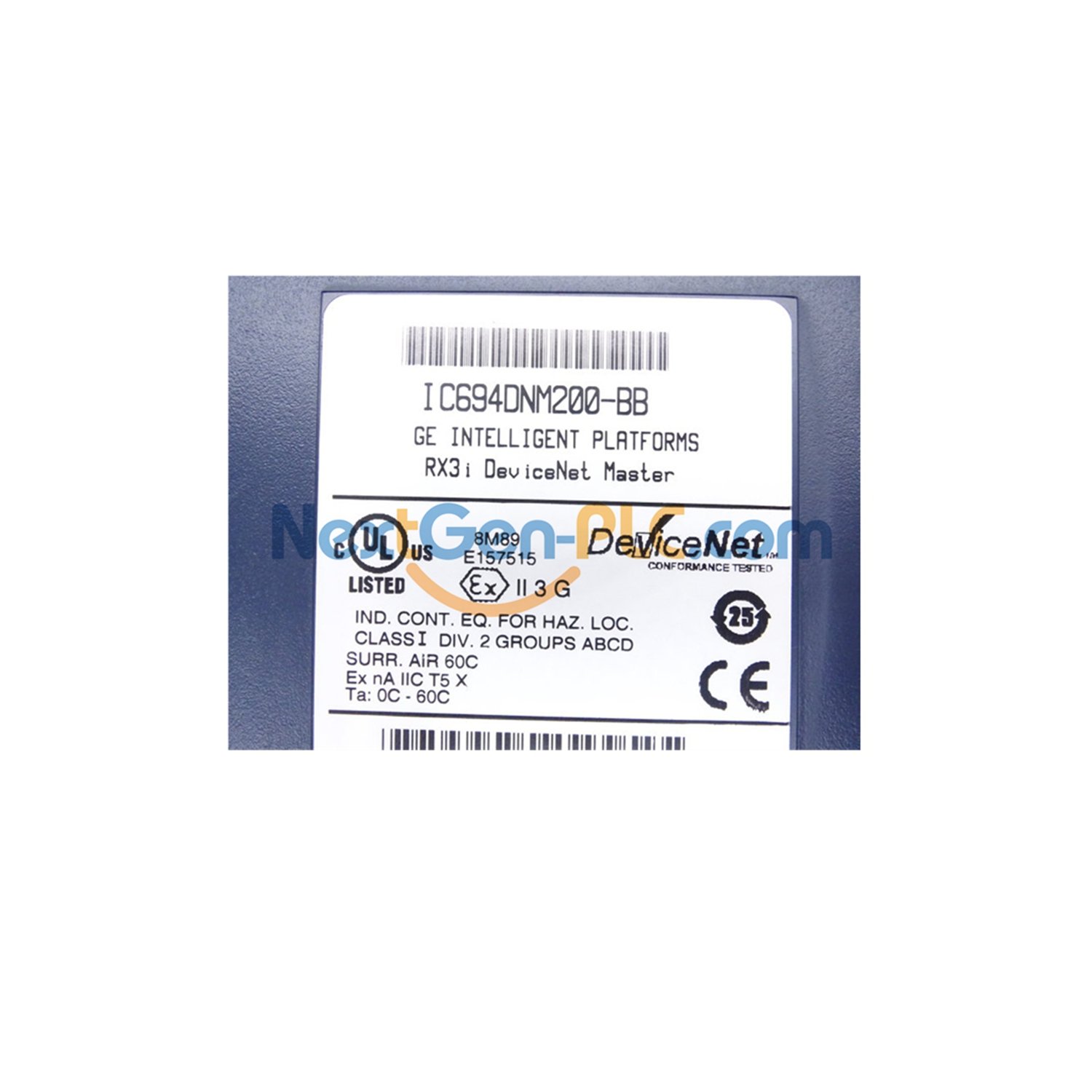

Product Overview

The IC694DNM200 is a DeviceNet Master for PACSystem RX3i and Series 90-30.

It connects up to 63 DeviceNet slaves.

Each slave can exchange 255 Bytes input and 255 Bytes output.

The module provides one RS232 service port and one DeviceNet Master port.

Install the module in a single RX3i or Series 90-30 slot.

Use it to build distributed I/O networks with configurable scan rates.

Supported connection types include Polled, Cyclic, Strobe, and Change of State.

Upgrade module firmware quickly through the service port.

Technical Specifications

Communication Interface: One RS232 service port, One DeviceNet Master port

Protocol: DeviceNet

Maximum Slave Devices: 63

Input per Slave: 255 Bytes

Output per Slave: 255 Bytes

Maximum Total Data: 3972 Bytes input, 3972 Bytes output

Communication Rates: 125k, 250k, 500k baud

Topology: Trunkline or Dropline

Redundancy: Not supported

Compatible CPUs: RX3i version 3.5 or later

Power Draw: 450 mA @ 5 VDC

Mounting: RX3i and Series 90-30 backplane
