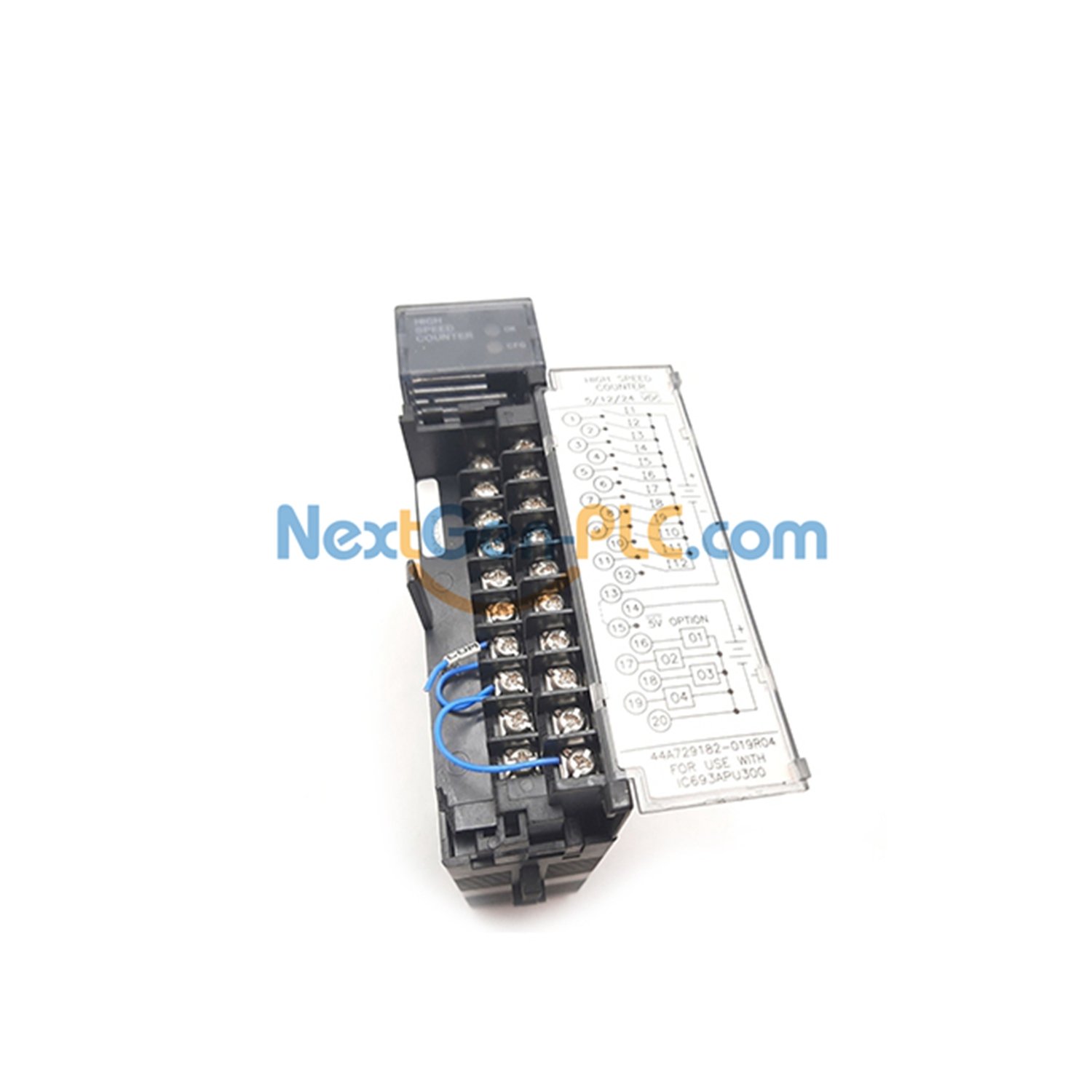

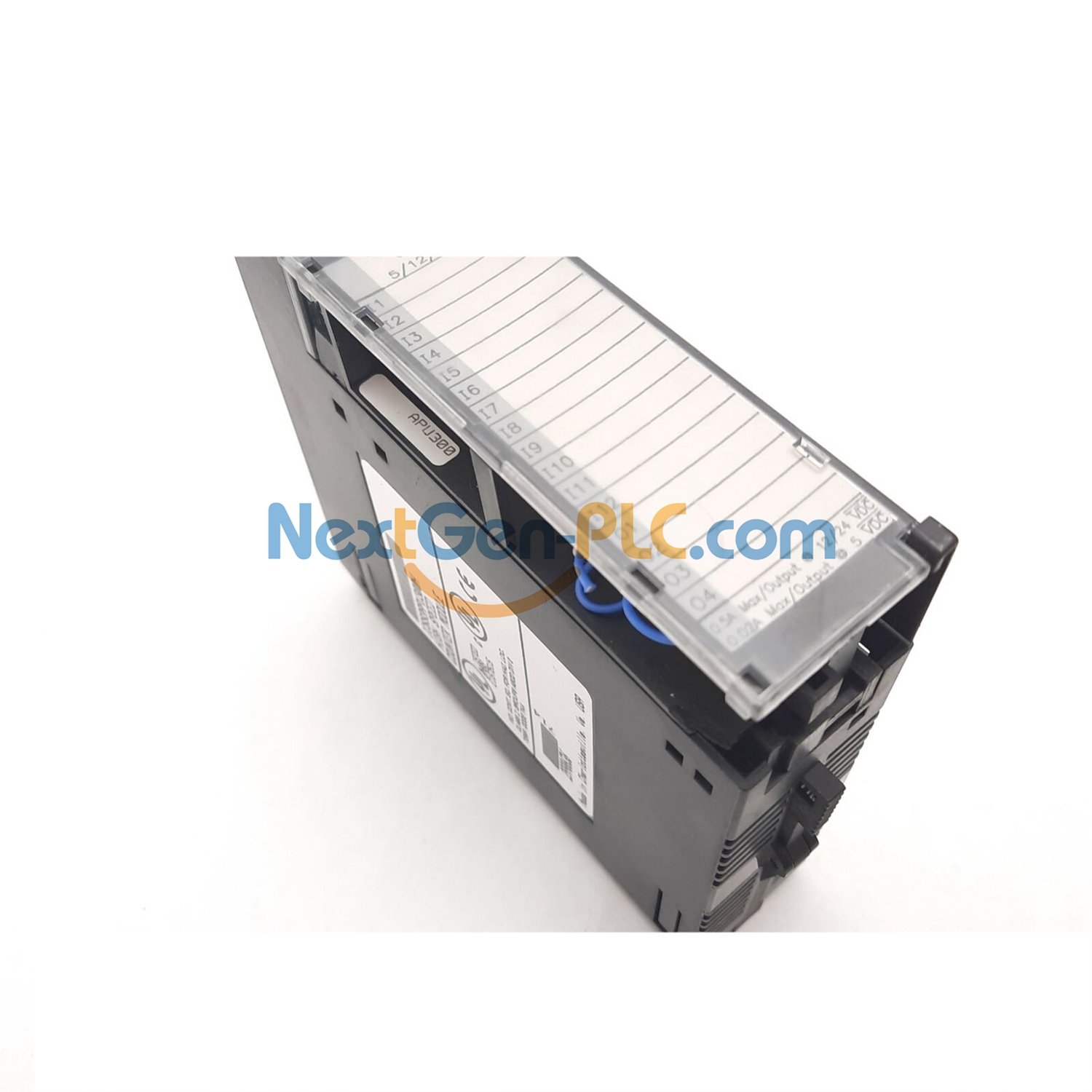

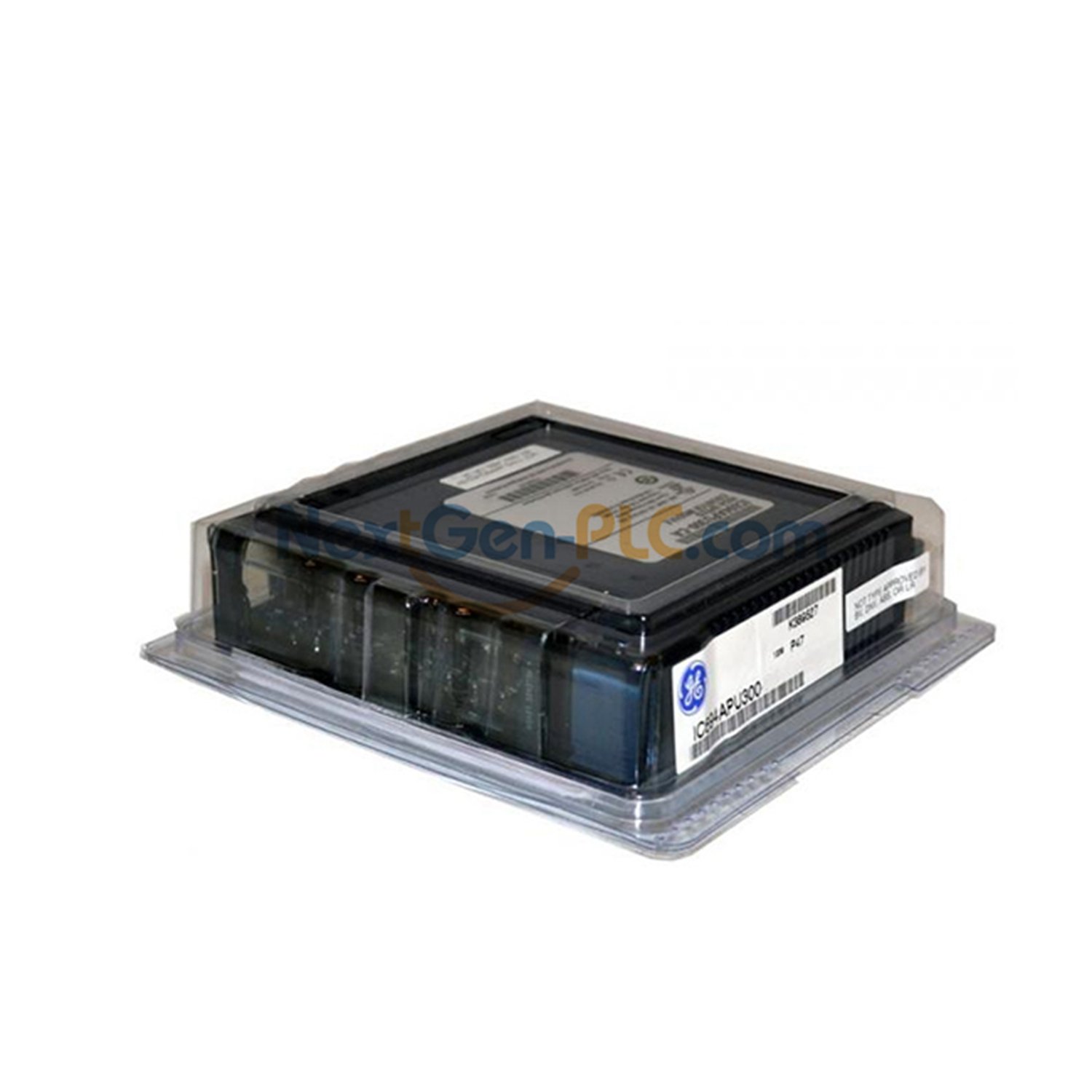

GE Fanuc IC694APU300 High-Speed Counter Module

GE Fanuc IC694APU300 High-Speed Counter Module for RX3i PacSystem

Technical Specifications

• Brand: GE Fanuc
• Series: RX3i PacSystem
• Module Type: High-Speed Counter Module
• Part Number: IC694APU300
• Power Consumption: 250 mA / 1.25 W
• Maximum Count Rate: 1 MHz (Duty Cycle 25% to 87%)
• Input Voltage Range: 5 V DC (TSEL jumpered) or 10–30 V DC (TSEL open)
• Positive Logic Inputs: 12 single-ended or 6 differential
• Input Thresholds: 5 V DC, 10–30 V DC
• Output Voltage Range: 4.7–40 V DC, 1.5 A maximum resistive load
• Positive Logic Outputs: 4
• Inrush Current: 1.6 A without ESCP tripping
• Processing Speed: 80 kHz
• Operation Modes: Classic or Enhanced
• Mounting: DIN rail compatible
