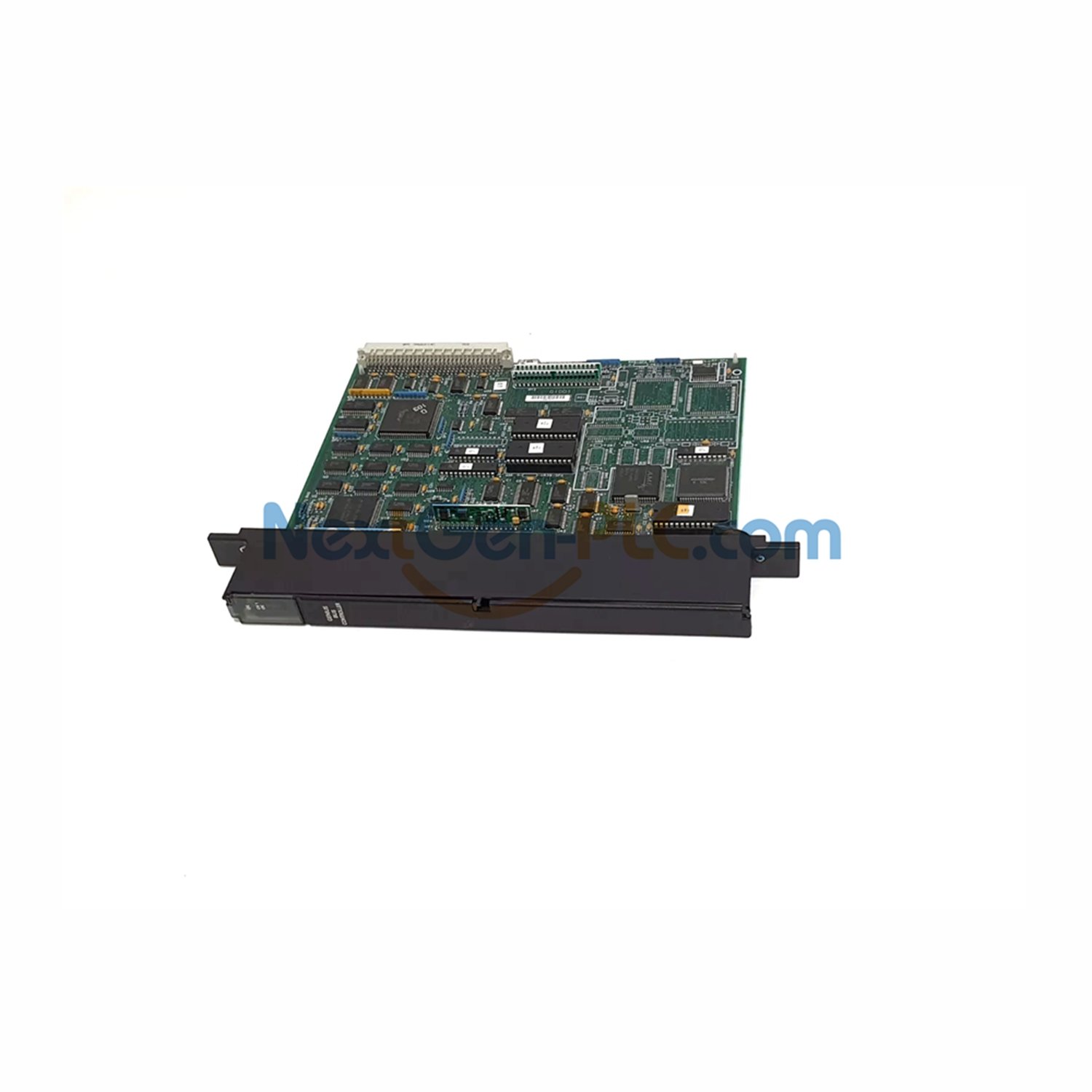

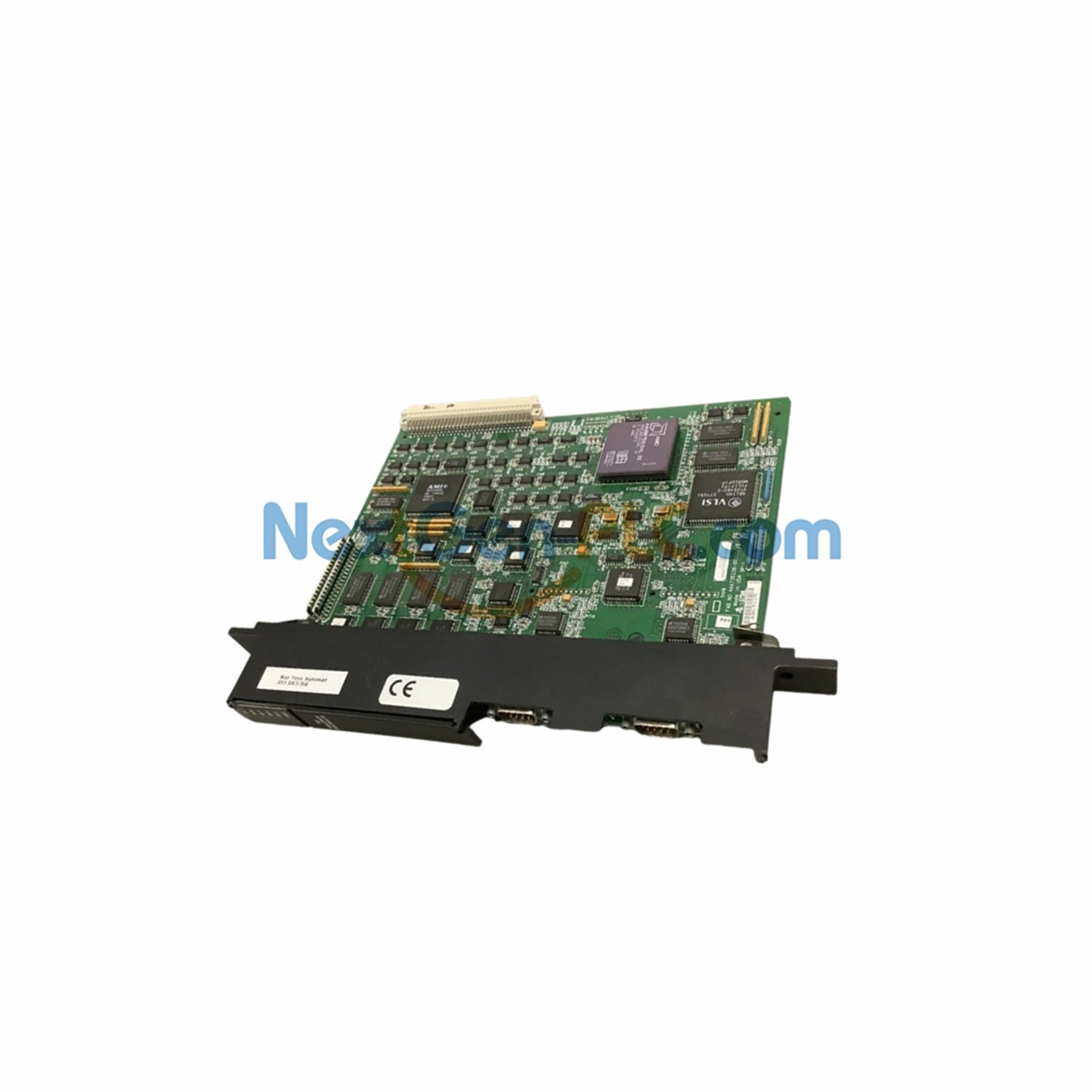

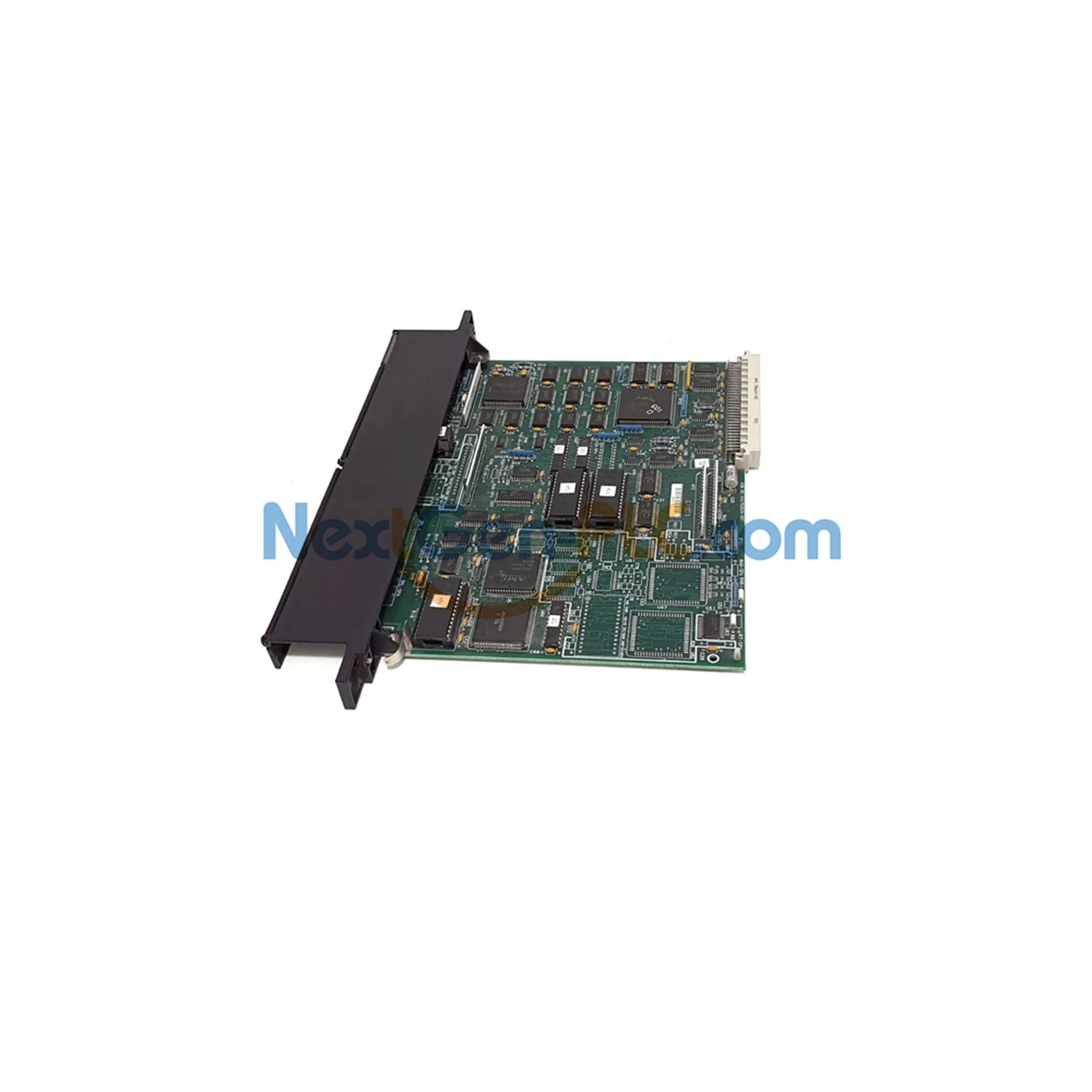

GE Fanuc IC687BEM744 FIP Bus

GE Fanuc IC687BEM744 Rx7i PACsystem FIP Bus Controller

Product Overview

The GE Fanuc IC687BEM744 is a FIP Bus controller in the Rx7i PACsystem series. It runs at 2.5 MHz and supports 128 devices. The controller links I/O devices and field modules easily. Users set it up with CIMPLICITY Control 90 software. It has a serial port and two FIP bus connectors. Six LED indicators show status, and a pushbutton allows quick restarts.

Technical Specifications

• Brand: GE Fanuc
• Series: Rx7i PACsystem
• Model: IC687BEM744
• Type: FIP Bus Controller
• Frequency: 2.5 MHz
• Devices Supported: Up to 128
• Status LEDs: 6
• Restart Pushbutton: Yes
• Serial Port: Yes, 15-pin
• FIP Bus Connectors: Yes, two 9-pin
• Network Diagnostics: Yes
• Controllers per Rack: 4 max recommended
• Slot Size: Half-slot
