GE Fanuc IC200MDD845 – Mixed I/O Module

GE Fanuc IC200MDD845 Mixed I/O Module

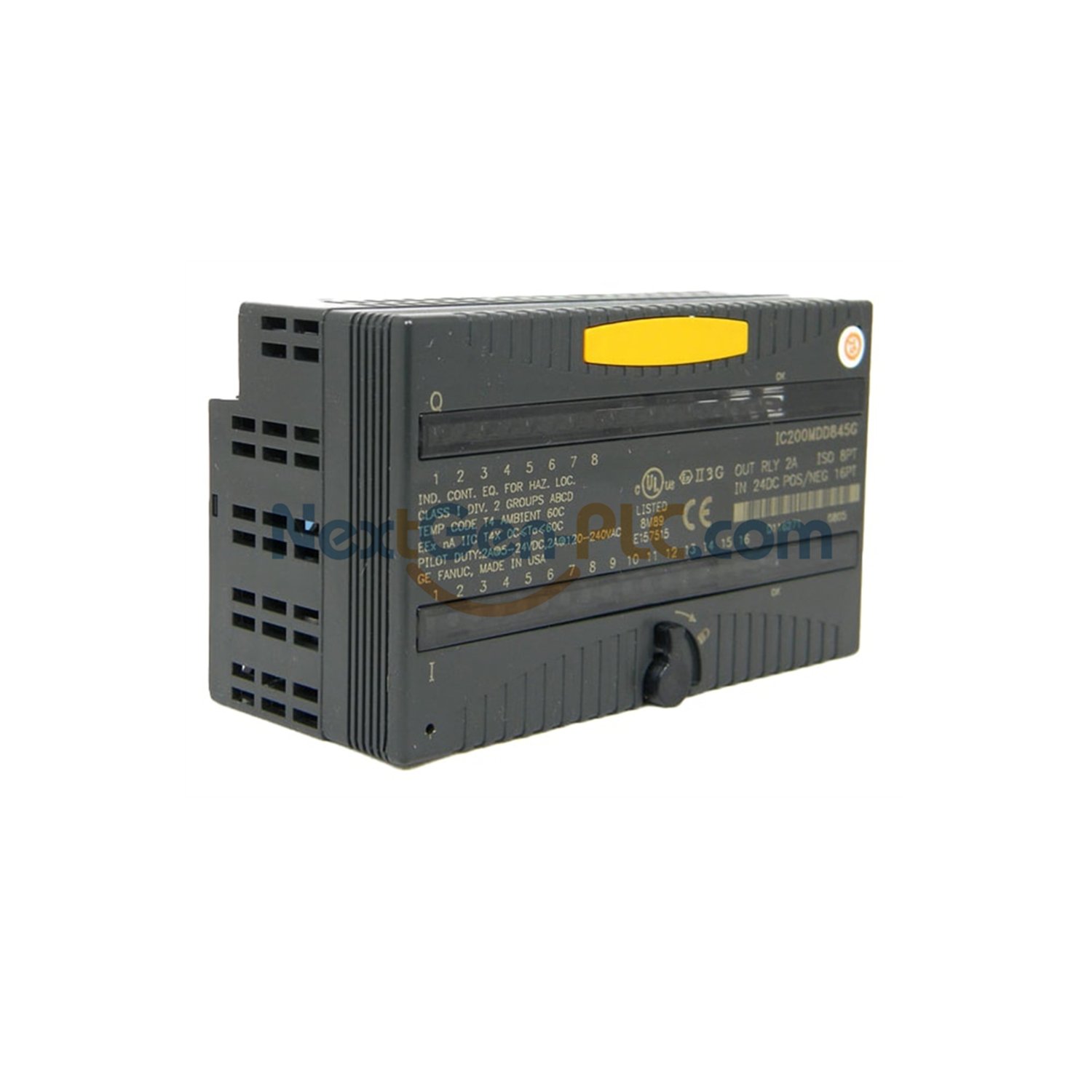

The IC200MDD845 is a combination I/O module from GE Intelligent Platforms, now part of Emerson Automation. It belongs to the VersaMax series and provides 24 discrete input and output points in a single compact unit.

This module combines 16 digital inputs with 8 relay outputs. It works with VersaMax control systems and distributed I/O stations. The module fits into standard VersaMax bases for easy installation.

Key Features

• 24 total I/O points – 16 inputs and 8 relay outputs
• Relay contacts – Form A, normally open
• High current rating – 2.0 Amperes per output
• Wide voltage range – works with AC and DC power
• LED indicators – shows status for each channel

Technical Specifications

Input Specifications

The IC200MDD845 has 16 DC input points. These inputs use 24 VDC power and work with positive logic. The input voltage can range from 18 to 30 VDC.

Each input uses 2.0-5.5 mA when turned on. When off, they use less than 0.5 mA. The inputs respond quickly to signal changes for reliable operation.

Output Specifications

The module features 8 relay outputs with Form A contacts. These are normally open contacts that close when activated. Each output can handle up to 2.0 Amps.

The relay outputs work with both AC and DC power. They support 0-125 VDC and 0-265 VAC systems. This makes them very flexible for different applications.

Installation and Operation

The IC200MDD845 needs an IC200CHS series carrier base for installation. It gets power from the backplane but outputs need external power. The module uses up to 270 mA from the backplane.

LED lights show the status of each input and output. A green OK LED indicates the module has power. This helps with troubleshooting and monitoring.

Common Questions

How many points does this module have?

The IC200MDD845 has 24 total points. There are 16 inputs and 8 relay outputs.

What type of outputs does it have?

It has Form A relay outputs. These are normally open contacts that can switch AC or DC power.

What is the maximum current per output?

Each output can handle 2.0 Amps maximum. This works for both AC and DC loads.

Do you have this module in stock?

Yes, we stock the IC200MDD845. All units are new and original from the manufacturer.

What power does the module need?

It uses 24 VDC for inputs and needs external power for outputs. The backplane provides control power.

How soon can you ship?

We ship within 5 business days. We use reliable carriers like DHL and FedEx.

What is your return policy?

We accept returns within 30 days. The module must be in original condition with all packaging.
