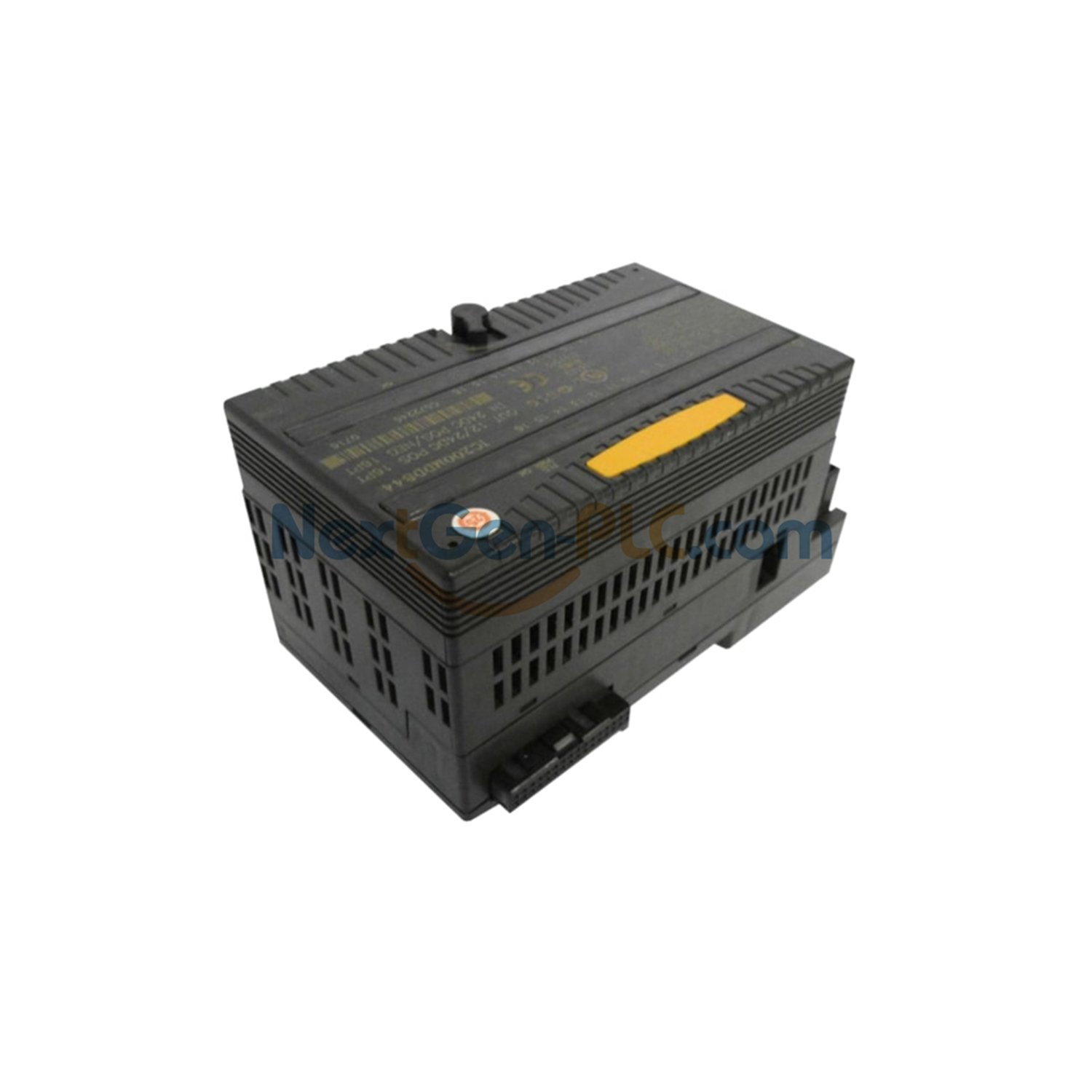

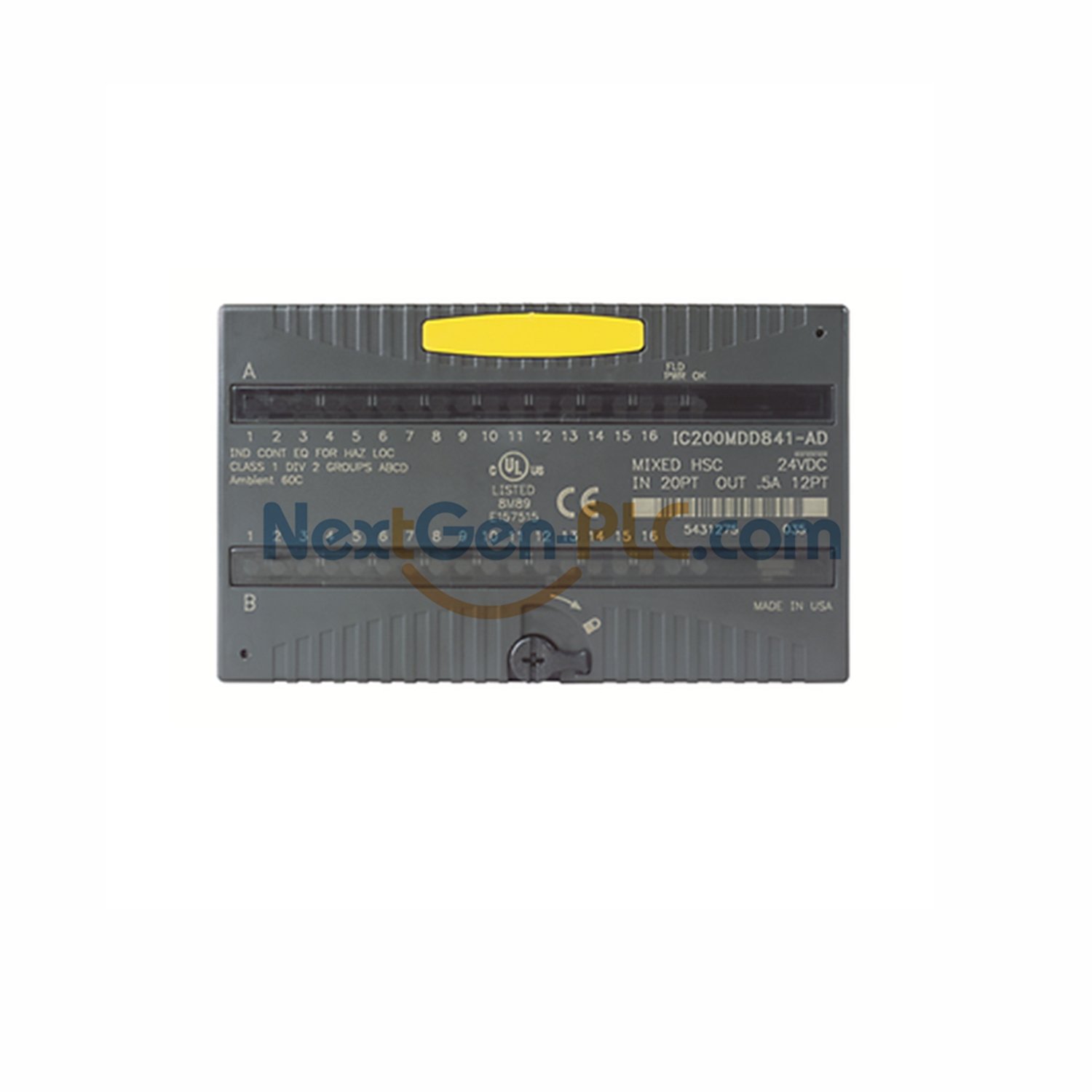

GE Fanuc IC200MDD841 High-Speed Counter Module

GE Fanuc IC200MDD841 High-Speed Counter

The IC200MDD841 counts fast pulses for machines. It works with VersaMax systems. This module has both inputs and outputs.

Key Features

• 32 configurable points
• 80 kHz counting speed
• 4 high-speed counters
• 20 digital inputs
• 12 digital outputs
• 24 VDC power
• LED status lights

Technical Details

• Brand: GE Fanuc
• Model: IC200MDD841
• Series: VersaMax
• Speed: 80 kHz
• Points: 32 total
• Inputs: 20 points
• Outputs: 12 points
• Counters: 4 Type-A
• Voltage: 24 VDC
• Current: 30 mA

Counter Features

• 4 high-speed counters
• 80 kHz pulse speed
• Pulse train output
• PWM capability
• Ramping functions
• 13 status words

Power Requirements

• 24 VDC operation
• 30 mA backplane use
• 5V backplane power
• External power for outputs
• 3-8 mA on current
• 0-0.5 mA off current

Physical Details

• Width: 110 mm
• Height: 66.8 mm
• Depth: 50 mm
• DIN rail mount
• LED indicators
• Error detection
