GE Fanuc IC695ACC402 | PACSystem RX3i CPE330 Energy Pack
Product Overview
IC695ACC402 is a CPU energy pack for PACSystem RX3i.
It works only with the CPE330 CPU.
It keeps RAM data safe by transferring it to non-volatile memory during power loss.
The module mounts on a DIN rail or panel and connects via IC695CBL002 cable.

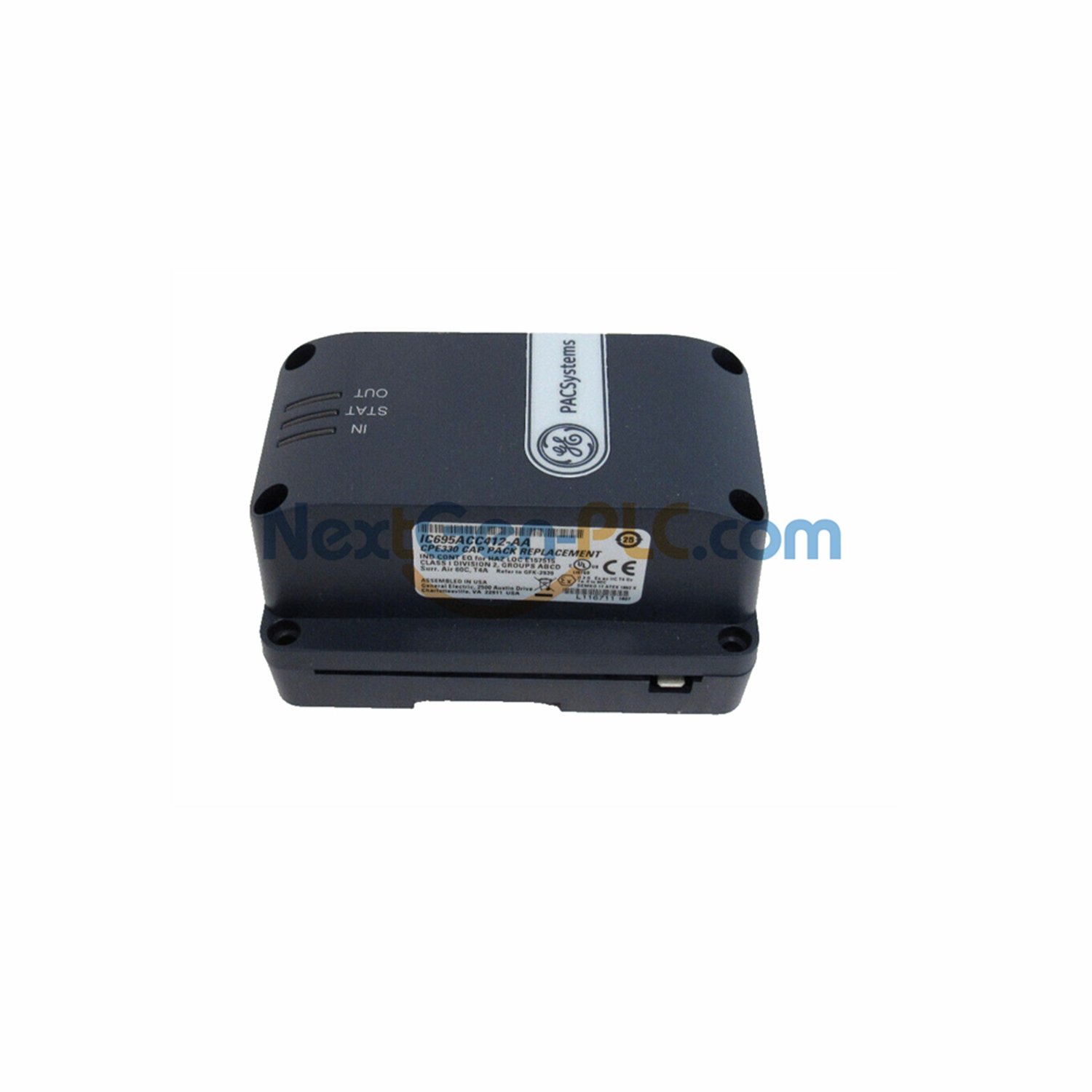

Local LEDs show status: IN, STAT, and OUT. Firmware is upgradeable from the CPU.
Specifications
| Brand | GE Fanuc / Emerson |
| Model | IC695ACC402 |
| Series | PACSystem RX3i |
| Supported CPU | CPE330 |
| Mounting | DIN rail / Panel |
| Input Voltage | 20–30 VDC |
| Output Voltage | 18–30 VDC |
| Maximum Output Power | 45 W |
| Maximum Output Current | 2.25 A |
| Backup Trip Voltage | 19 VDC ±4% |
| Cable | IC695CBL002, 36” (1 m) |
| Capacitor Life | 5 years |
| Dimensions | 114 × 77 × 64 mm |
| Operating Temp | -25 to 60°C |
| Certifications | EU RoHS Directive |
Installation & Use
Mount the IC695ACC402 on a DIN rail or panel near the CPU.
Connect the module to the CPU with IC695CBL002.
It charges from the PLC backplane automatically.
Provides smooth power transfer to save memory during outages.
