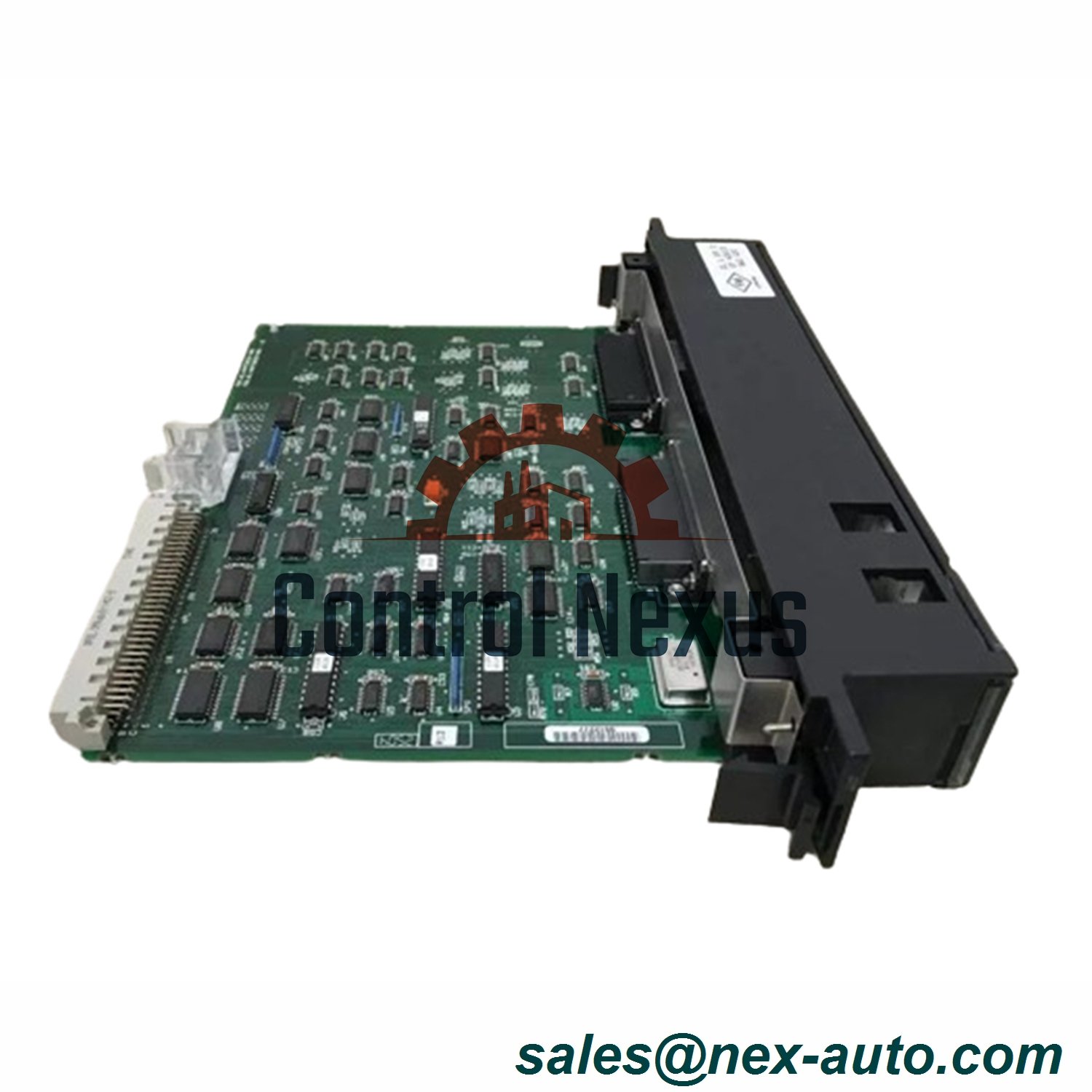

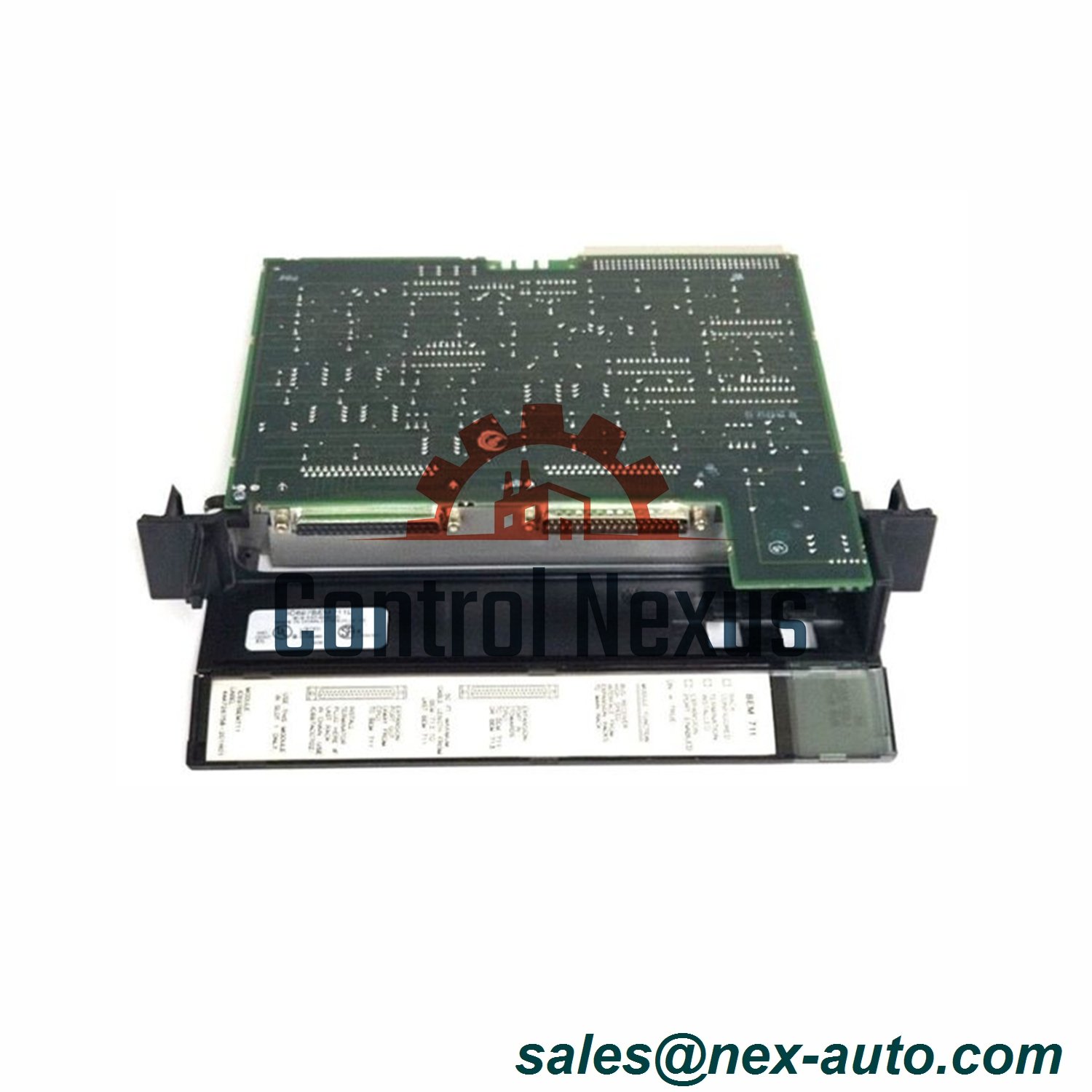

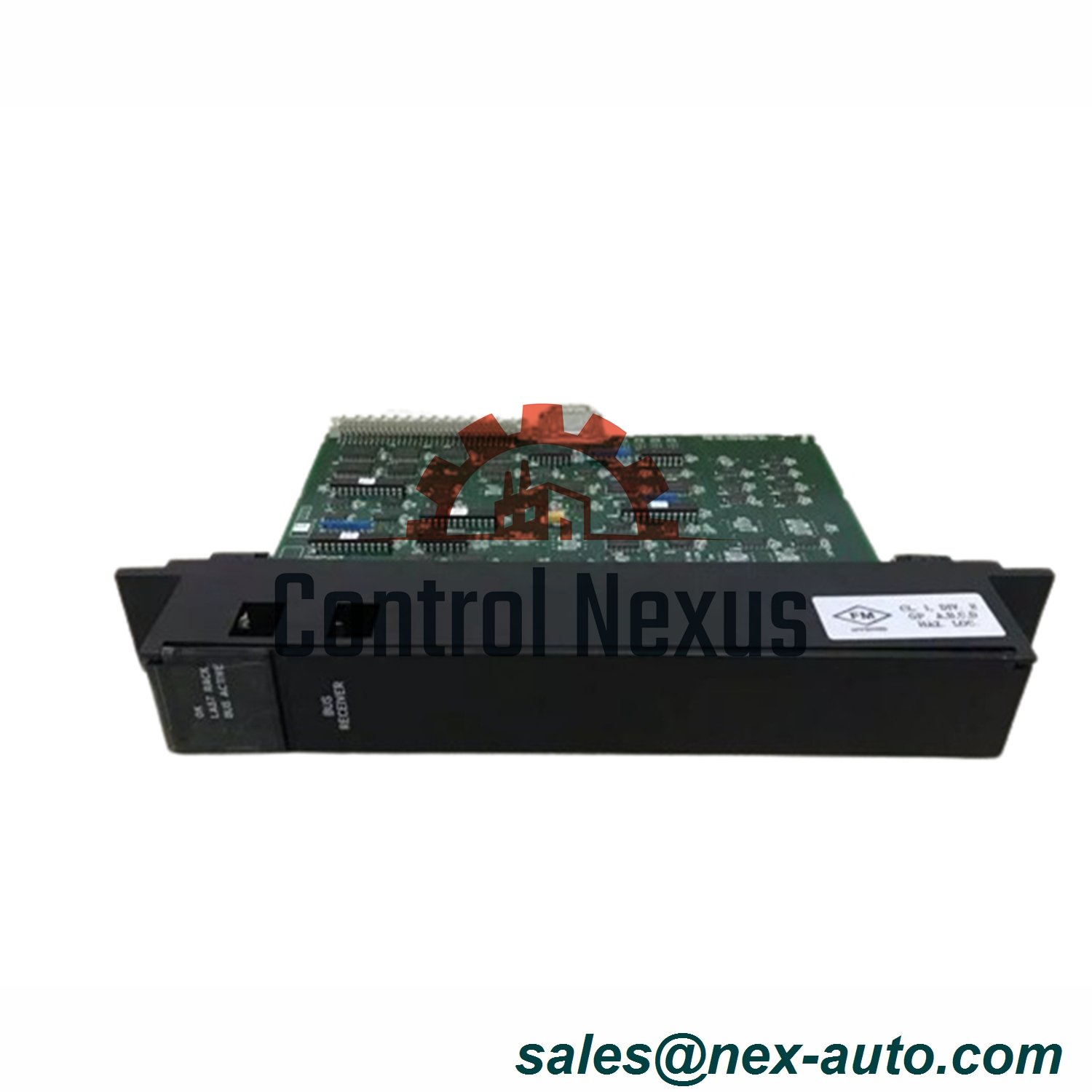

GE Fanuc IC697BEM731 Series 90-70 Genius Bus Controller Module
Main Features
- Controls up to 30 devices per channel
- Built-in HHM port for configuration and monitoring
- Data rates: 153.5 Kbaud standard/extended, 76.8 Kbaud, 38.4 Kbaud
- Maximum bus distance: 2000–7500 ft depending on baud rate
- Bus termination: 75 or 150 Ohm resistors at both ends
- Three LED indicators for status and diagnostics
- Windows or MS-DOS software configuration support
Technical Specifications
| Brand | GE Fanuc |
| Series | Genius Bus I/O |
| Part Number | IC697BEM731 |
| Voltage | 5 VDC |
| Backplane Current | 1.3 A |
| Module Type | Bus controller |
| Ports | 1 Bus channel, 1 Hand-Held Monitor port |
| Data Rates | 153.5 Kbaud / 76.8 Kbaud / 38.4 Kbaud |
| Cable Type | Belden 9182 |
| Max Cable Length | 2000–7500 ft depending on data rate |
| Bus Termination | 75 or 150 Ohm resistors at each end |
| LED Indicators | 3 LEDs |
| Weight | 2.0 Pounds |
Installation & Notes
Install the IC697BEM731 in the IC66 PLC rack.
Configure using Windows or MS-DOS software. Set the baud rate and bus address.
All devices on the bus must use the same baud rate for proper communication.
LEDs show operation and communication status. Bus terminators are required at both ends.
