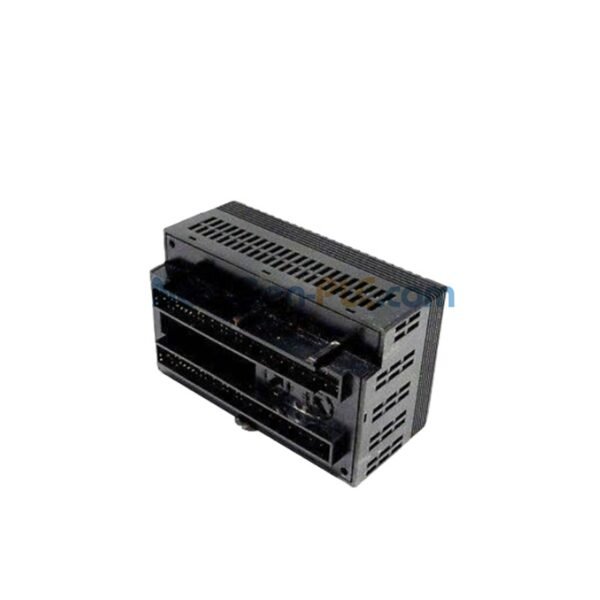

GE Fanuc IC200ALG230 Analog Input Module
Technical Specifications
| Brand | GE Fanuc |
| Model | IC200ALG230 |
| Series | VersaMax |
| Input Channels | 4 analog inputs |
| Resolution | 12 bits |
| Voltage Range | -10V to +10V DC |
| Current Range | 4-20 mA |
| Response Time | 5.0 ms |
| Update Rate | 0.4 ms |
| Power Consumption | 125 mA at 5V DC |
Input Configuration Table
| Signal Type | Range | Resolution |
| Voltage Bipolar | -10V to +10V | 12 bits |
| Voltage Unipolar | 0 to +10V | 12 bits |
| Current | 4-20 mA | 12 bits |
Key Features
- Four configurable inputs
- Voltage or current signals
- Two status LED indicators
- Easy jumper configuration
- 12-bit high resolution
- Fast response time
- Backplane power only
Configuration Options
- Two setting jumpers
- Voltage or current mode
- Unipolar or bipolar
- Error response settings
- Range selection
- Mode selection
Status Indicators
- INT PWR – internal power
- OK – module status
- Easy fault finding
- Visual status check
- Quick troubleshooting
Safety Features
- 250V AC optical isolation
- Error handling options
- Shield grounding
- Safe cable installation
- Stable operation
Compatible Carriers
- IC200TBM001 terminal
- IC200TBM002 terminal
- IC200TBM005 terminal
- IC200CHS001 carrier
- IC200CHS002 carrier
- IC200CHS005 carrier
Installation Guide
- Use compatible carrier
- Set configuration jumpers
- Ground cable shields
- Check LED status
- Verify signal types
- Test all channels
Shipping Information
- Protected packaging
- FedEx, UPS, DHL
- Fast order processing
- Tracking provided
- Worldwide delivery
Common Questions
- How many inputs? Four analog channels.
- What signals supported? Voltage and current.
- Power needs? Backplane power only.
- Configuration method? Two setting jumpers.
- Response time? 5.0 milliseconds typical.
