330905-05-08-10-01-00 – Proximity Probe | Bently Nevada

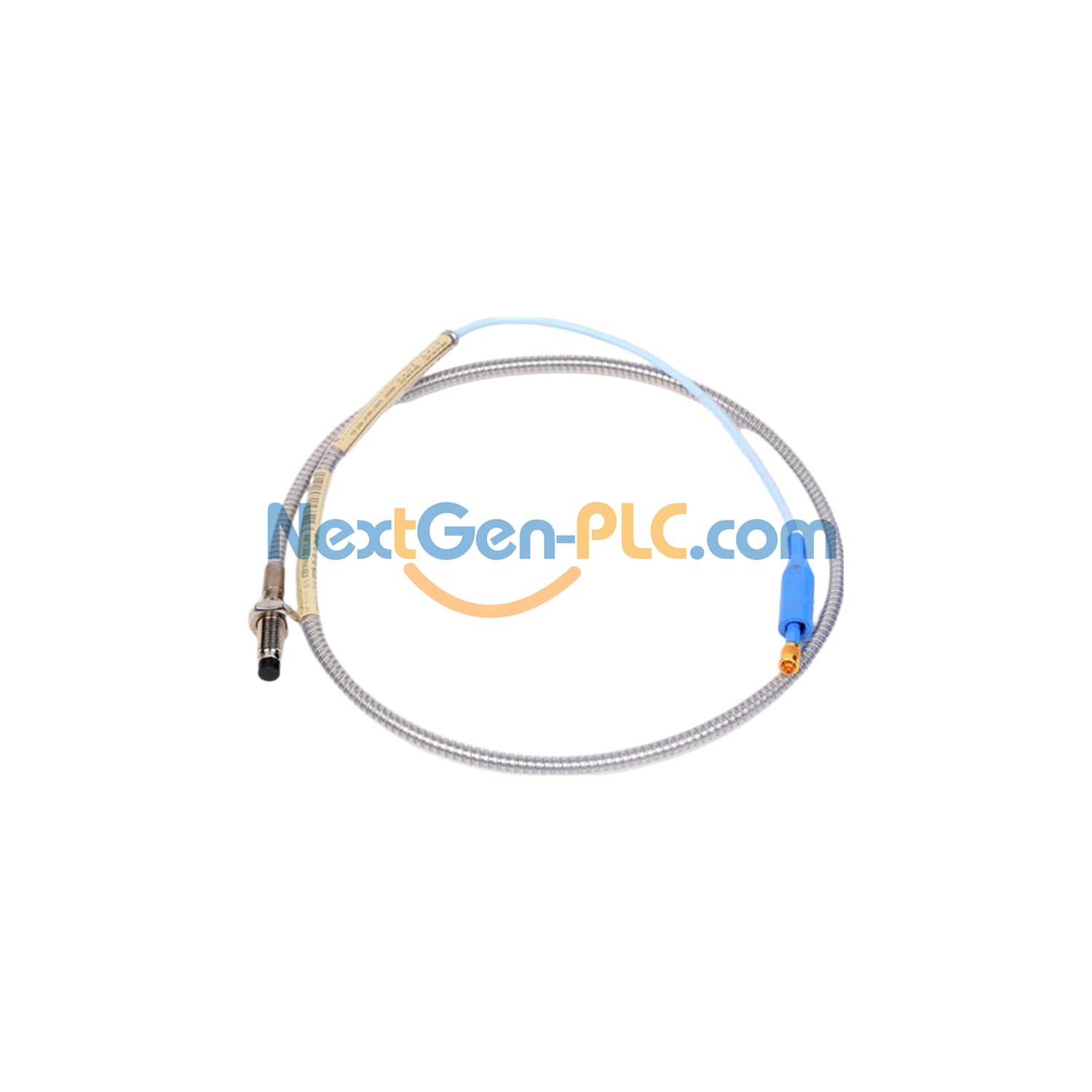

Bently Nevada 330905-05-08-10-01-00 3300 NSv Proximity Probes: High-Quality Sensing Solution

About This Product

Brand new, factory-sealed, and made by Bently Nevada. This probe resists chemicals better than older 3300 RAM models—ideal for process compressors. It works with 3300 RAM probes and cables, making setup quick and easy.

Model Code Breakdown

330905: Base type (M10X1 thread, no armor)
-05: Unthreaded length – 50 mm
-08: Case length – 80 mm
-10: Total length – 1.0 m (39 in)
-01: Small ClickLoc connector with protector
-00: No extra approvals needed

Key Specifications

Brand: Bently Nevada | Model: 330905-05-08-10-01-00 (3300 NSv)

Working Range: 0.25-1.75 mm (10-70 mils). Best gap: 1.0 mm (40 mils).
Accuracy: Error less than ±0.06 mm (±2.3 mils).
Signal Output: 7.87 V/mm (200 mV/mil) (with some range).
Frequency: 0-10 kHz (works with 305m wiring).
Temp Range: -52°C to +177°C (-62°F to +351°F).
Materials: PPS tip, AISI 304 stainless steel case.
Cable: 75 Ω coaxial, FEP insulated (lengths: 0.5/1/5/7m).

Installation Notes

Tighten: Use fingers first. Max force: 0.56 N•m (5 in•lb).
Bend: Min 25.4 mm (1.0 in) radius (with/without armor).
Thread: Max 15 mm for M10X1 cases.

Compatibility

Fits Bently Nevada 3300 RAM probes and extension cables.

Package Includes

Factory-sealed probe, 1.0m extension cable, and small ClickLoc connector with protector.
Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
