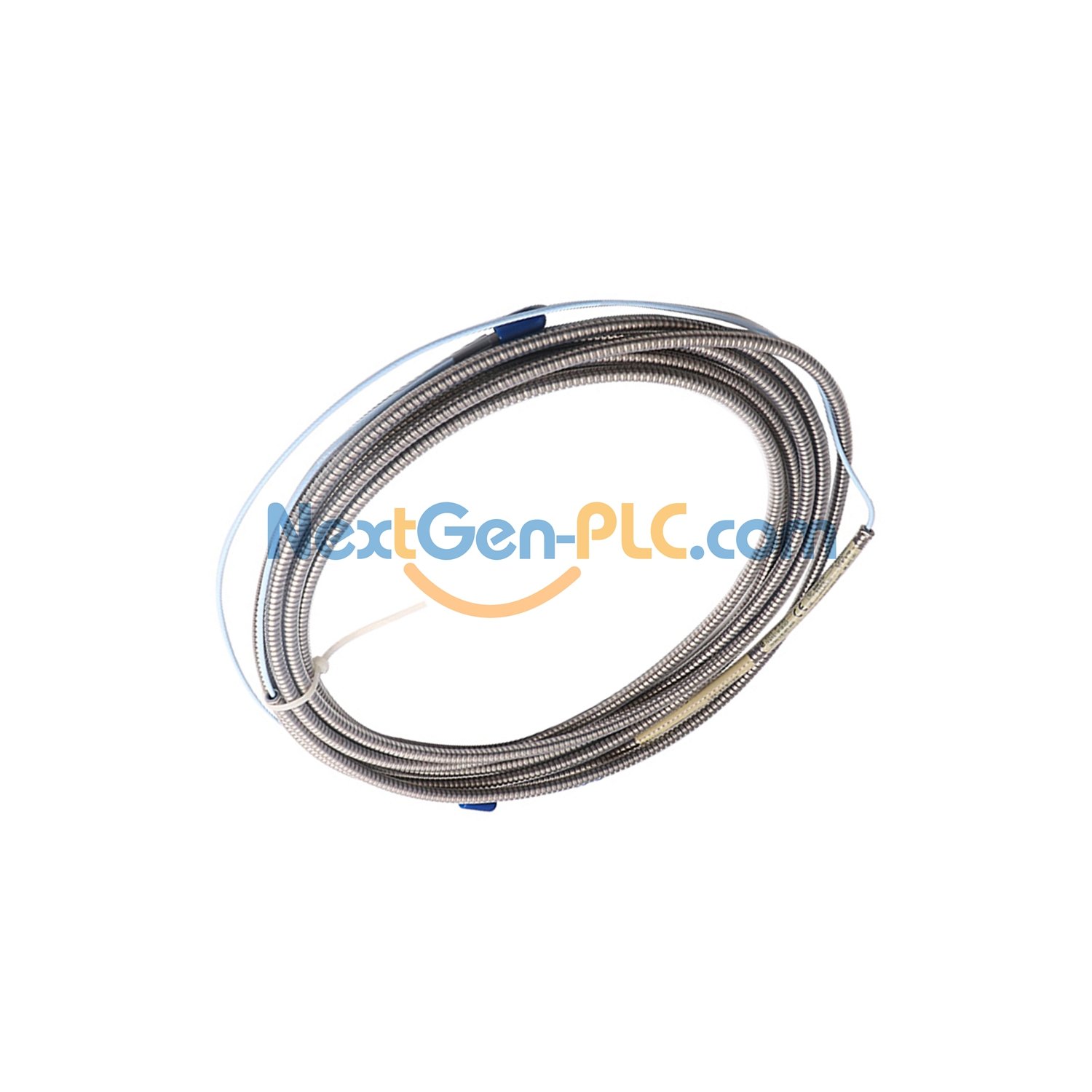

Bently Nevada 3300 XL Vibration Probe
Model: 330101-00-55-05-02-05
Premium vibration monitoring solution with CSA/ATEX/IECEx safety certifications. Features 5.5″ stainless steel case and patented TipLoc technology for extreme reliability.
Key Features
- 8mm diameter sensing tip
- 3/8-24 UNF threaded design
- 1.6ft (0.5m) integrated cable
- ClickLoc quick-connect connector
- Optional FluidLoc leak protection
Technical Specifications
- Range: 2mm (80 mils)
- Accuracy: ±5%
- Temp Range: -52°C to +177°C
- Cable Strength: 75lb pull resistance
- Output: 7.87V/mm (200mV/mil)
Product Number Breakdown
| 330101 | 00 | 55 | 05 | 02 | 05 |
|---|---|---|---|---|---|
| Base Model | 0″ Unthreaded | 5.5″ Case | 0.5m Cable | ClickLoc | Safety Certs |
Installation Guide
- Recommended gap: 1.27mm (50 mils)
- Use shielded triad cable (16-24 AWG)
- Max cable run: 305m (1000ft)
- Works with all 3300 XL monitors
Common Applications
Steam Turbines
Centrifugal Compressors
Large MotorsCertifications
Package Includes
- 1 × Vibration Probe
- 1 × 0.5m Cable Assembly
- Installation Manual
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
