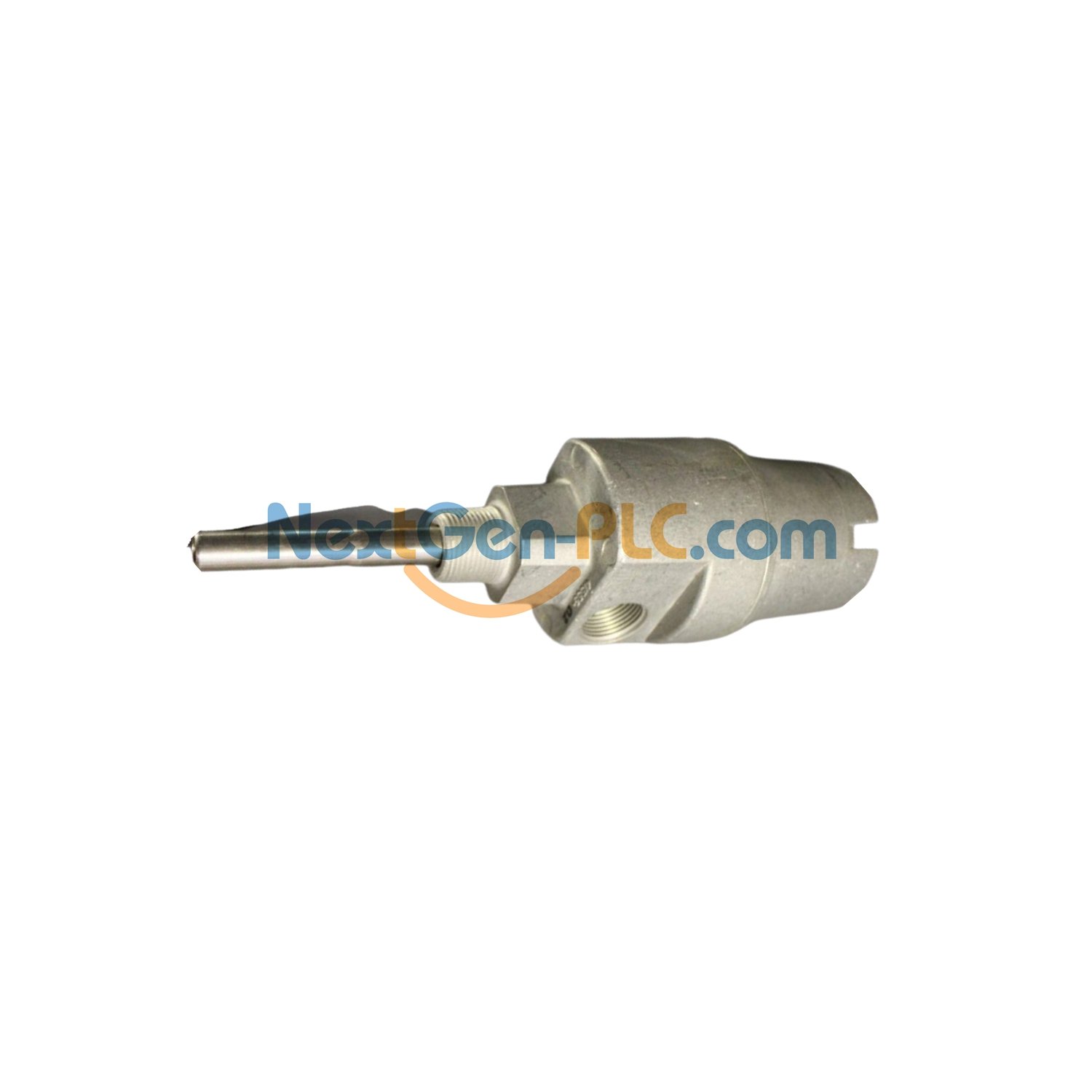

Bently Nevada 24701-28-10-00-090-00-01 Proximity Housing Assembly

Industrial-Grade Vibration Monitoring Solution

This new 24701-28-10-00-090-00-01 assembly provides reliable machinery protection with cast body construction. Features 303/304 stainless steel materials and comes in factory packaging with 12-month warranty.

Complete Technical Specifications

Brand: Bently Nevada
Full Model: 24701-28-10-00-090-00-01
Probe Type: 3300 XL 8mm with connector
Cable: 1.0 meter (39 inches)
Penetration: 9 inches (229mm)
Material: 303 stainless steel body with 304 sleeve
Weight: 1.8kg (4.1lb)
Mounting: As cast without threads
Fittings: None included
Temperature Range: -40°C to +125°C
Vibration Range: 0-25 mils (0-635μm)
Accuracy: ±0.5% full scale
Response Frequency: 0-10 kHz

Package Includes

• Stainless steel housing body
• 9-inch probe sleeve
• Protective dome cover
• Sealing O-rings (3 pieces)
• Reverse-mount proximity probe
• Installation guide
• Factory QC certificate

Core Advantages

Robust Construction – Cast stainless steel withstands industrial environments
Precision Monitoring – High-accuracy vibration detection
Easy Integration – Direct compatibility with 3300 XL systems
Maintenance-Free – Sealed design prevents contamination

Quick Installation Steps

1. Position on flat mounting surface
2. Secure with provided hardware
3. Insert probe to 9″ depth
4. Connect sensor cable
5. Verify calibration settings

Certifications & Compliance

ISO 10816 vibration standards
ATEX/IECEx hazardous area certified
NIST-traceable calibration
RoHS compliant materials

Industrial Applications

• Steam turbine monitoring
• Gas compressor shafts
• Hydroelectric generators
• Conveyor drive systems
• Cooling tower fans
• Paper mill rollers

Compatibility Note

Designed for Bently Nevada 3300/3500 monitoring systems. Not compatible with 7200 series interfaces.

Warranty & Support

Full 12-month manufacturer warranty covers defects in materials and workmanship. Includes technical support for installation and troubleshooting.
