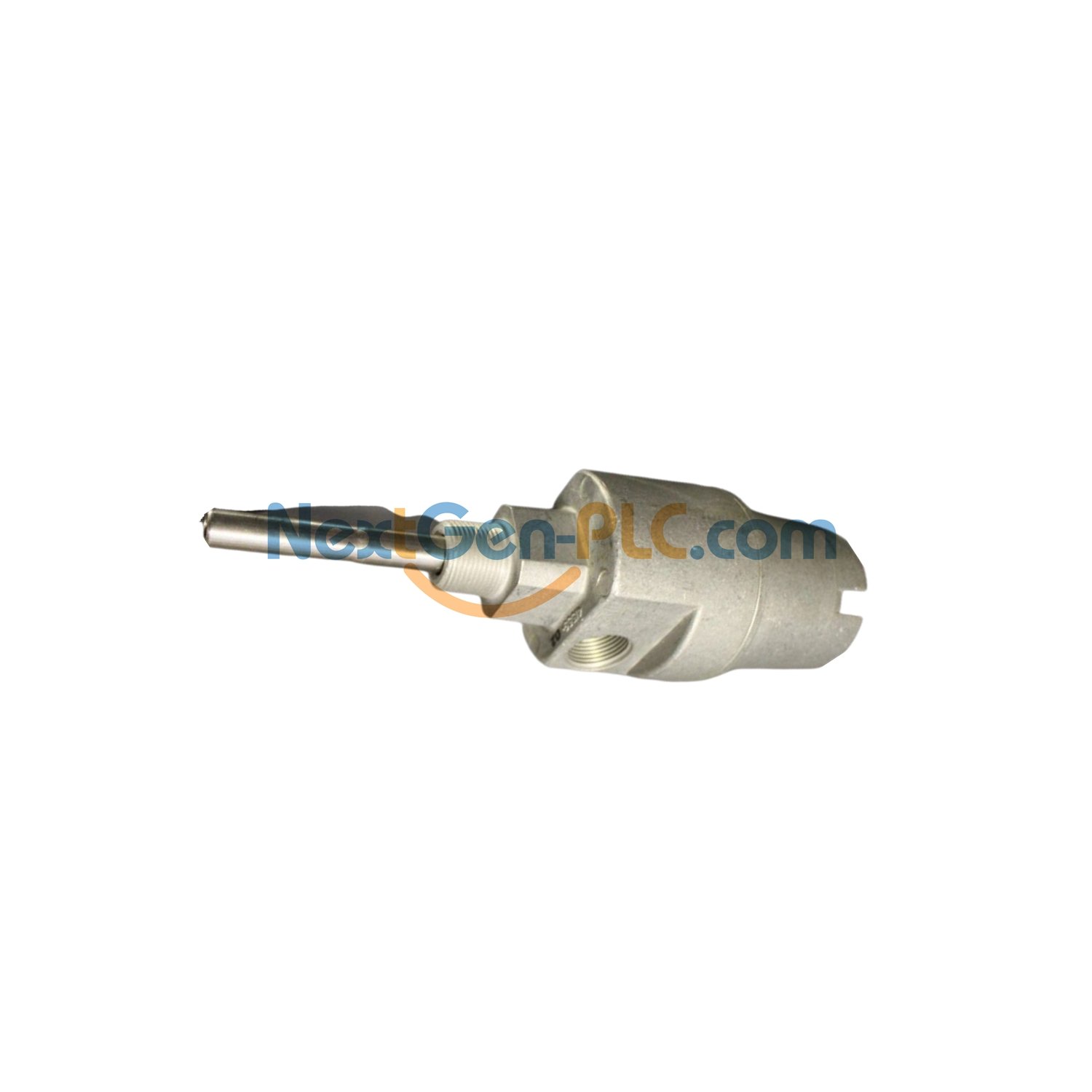

24701-28-05-00-040-00-02 Bently Nevada | Proximity Probe Housing Assembly
Description

Compact 4-Inch Proximity Monitoring Solution

New Bently Nevada 24701-28-05-00-040-00-02 assembly with factory warranty. Precision-engineered for space-constrained installations with NPT threaded mounting.

Essential Specifications

Brand: Bently Nevada
Complete Model: 24701-28-05-00-040-00-02
Probe Type: 3300 XL 8mm with connector
Penetration: 4 inches (optimal for tight spaces)
Cable: 0.5m flexible cable
Mounting: 3/4-14 NPT threaded
Material: Dual-grade stainless (303 body + 304 sleeve)
Dimensions: Max 13.5in/343mm length
Weight: 1.8kg (4.1lb)

Specialized Design Features

  • Shallow 4-inch penetration for compact machinery
  • Precision NPT threaded connection (3/4-14)
  • No fittings required – plug-and-play installation
  • Corrosion-resistant dual stainless construction
  • Reverse-mount probe for accurate readings

Complete Package Includes

  • Durable dome cover
  • 4-inch probe sleeve
  • Triple O-ring seals
  • Pre-calibrated proximity probe
  • Thread sealant compound
  • Installation documentation

Performance Metrics

Operating Temp: -40°C to +120°C
Response Time: <0.8ms
Vibration Tolerance: Up to 15g
Pressure Rating: 500 PSI
IP Rating: 67 (dust/water resistant)

Installation Instructions

Direct NPT-threaded mounting (3/4-14). Recommended torque: 25-30 Nm. No adapters required. Conduit-ready ports simplify wiring.

Compatibility Notes

Designed for Bently Nevada 3300 XL systems. NPT threading ensures compatibility with standard industrial ports.

Quality Certification

ISO 10817-1 compliant. Factory calibrated. 12-month warranty covers manufacturing defects.

Download PDF file here:21000-24701-Datasheet

Additional information
Weight1.8 kg
Dimensions48 × 8 × 3 cm
