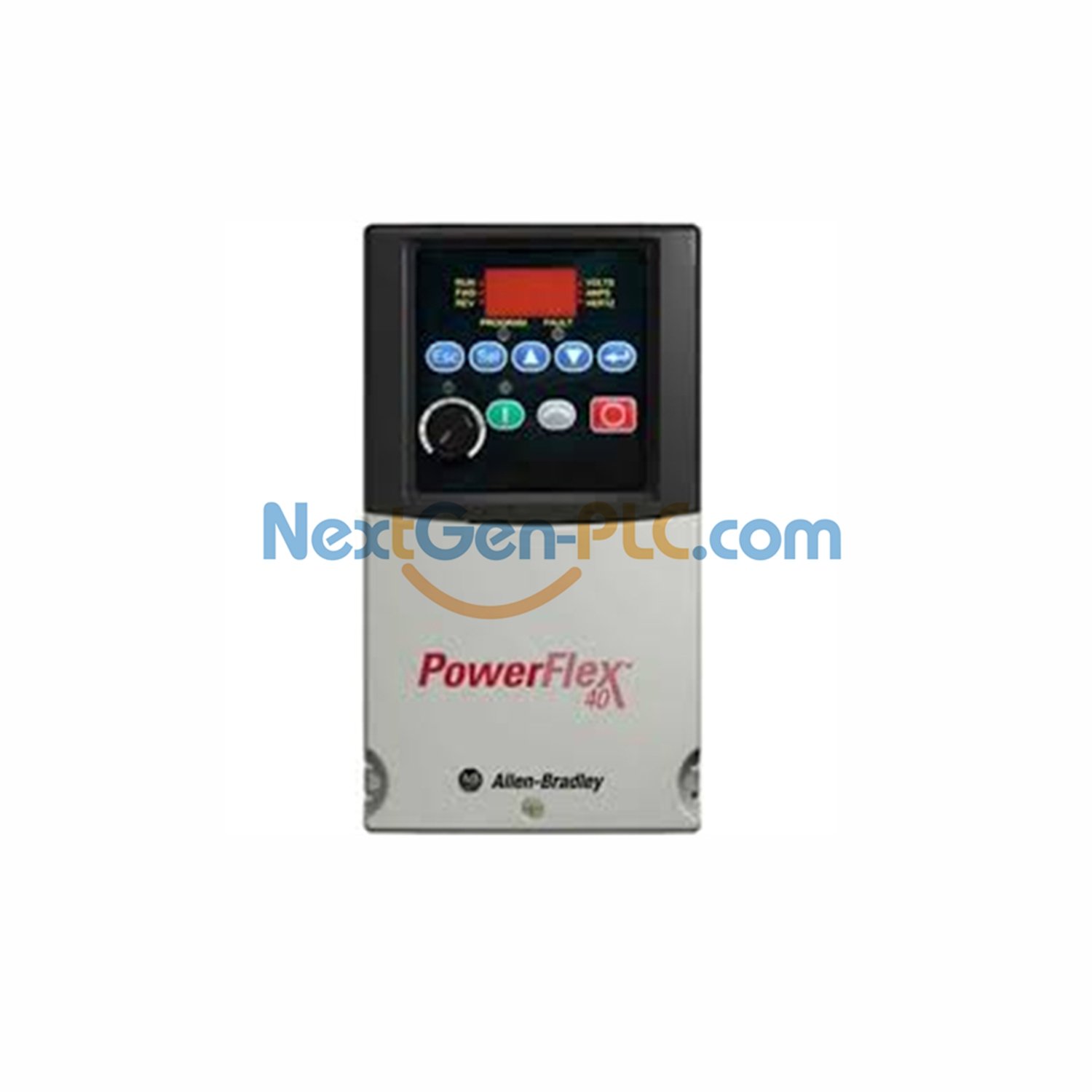

Allen-Bradley PowerFlex 40 Drive: Compact Control for Precision Automation

Core Features

22B-A2P3N114 VFD delivers 0.5 HP output with 240V AC single-phase input. Built-in CE filter ensures clean power flow. Perfect for conveyor systems and small pumps.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: PowerFlex 40-1P-0.5-Hx (22B-A2P3N114)
• Output: 2.3A, 0-60Hz frequency range
• Precision: ±0.5% speed regulation
• Communication: RS-485 Modbus protocol
• Thermal: Operates at -10°C to 50°C

Performance Highlights

Reduces energy costs by up to 30% in packaging machinery. IP20 protection safeguards against dust intrusion. Compact 2.31 kg design fits tight spaces.

Certified Reliability

CE Marked | UL Listed | RoHS Compliant

What’s Included

• Drive unit with terminal covers
• Quick-start guide (English/Spanish)
• Mounting brackets kit

Real-World Application

Controls 400W bakery oven conveyors at 45Hz, achieving 18% energy saving in 24/7 operation.

Warranty & Support

1-year defect coverage. Technical support: 1-440-646-5800 (Mon-Fri 8AM-5PM EST)

Seamless Integration

Works with Allen-Bradley CompactLogix 5370 controllers. Requires 35mm DIN rail space.

Installation Notes

• Clear 50mm airflow space above unit
• Torque terminal screws to 0.6 N·m
• Max altitude: 1000m above sea level

Download PDF file here:22B-UM001I-EN-E PowerFlex
