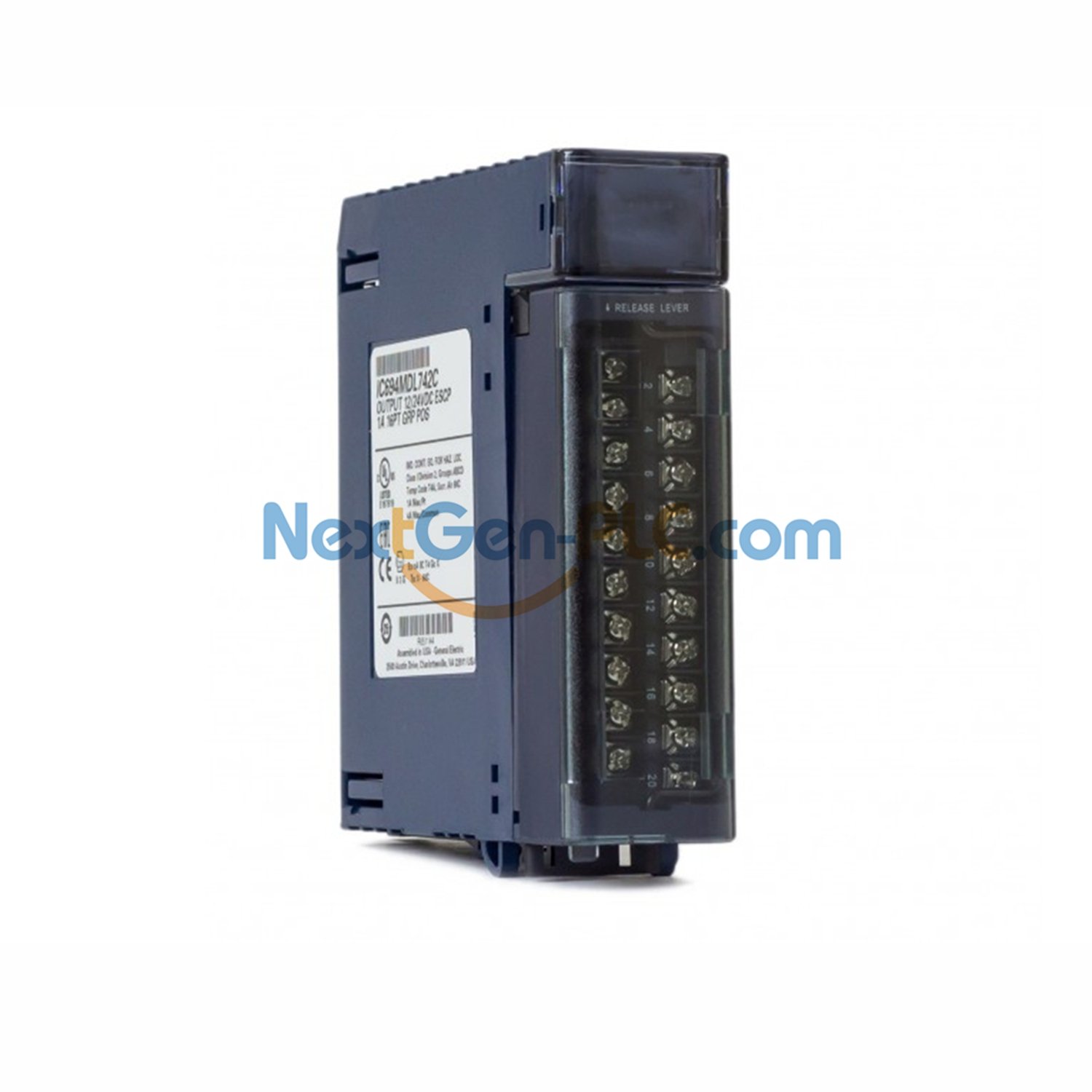

16-Point Output Module GE Fanuc IC694MDL741

IC694MDL741 PACSystem RX3i 16-Point 12/24V DC Negative Output Module

Key technical data

Model: IC694MDL741

Output type: Negative logic (sinking)

Total outputs: 16 (2 groups of 8)

Nominal voltage: 12 / 24 V DC

Voltage range: 12–24 V DC (+20%, -15%)

Current per channel: 0.5 A

Current per group: 2 A max

Backplane draw: 110 mA at 5V (all outputs ON)

On/Off response: 2 ms typical

Off-state leakage: ≤ 1 mA

Voltage drop: ≤ 0.5 V

Extended specifications

Operating temperature: -20 °C to +70 °C

Storage temperature: -40 °C to +85 °C

Relative humidity: 5–95% non-condensing

Max inrush current: 4.8 A for 10 ms

Wiring: 14–24 AWG field wiring

Front indicators: 1 LED per channel + FAULT LED

Technical summary table

Installation guide

Power down the rack before installation.

Insert the module into any free RX3i slot until it locks.

Connect field wiring to the group commons and outputs.

Use proper fuses (2 A recommended per group).

Ensure external power supply matches module voltage.

Use LEDs to verify output status during testing.
