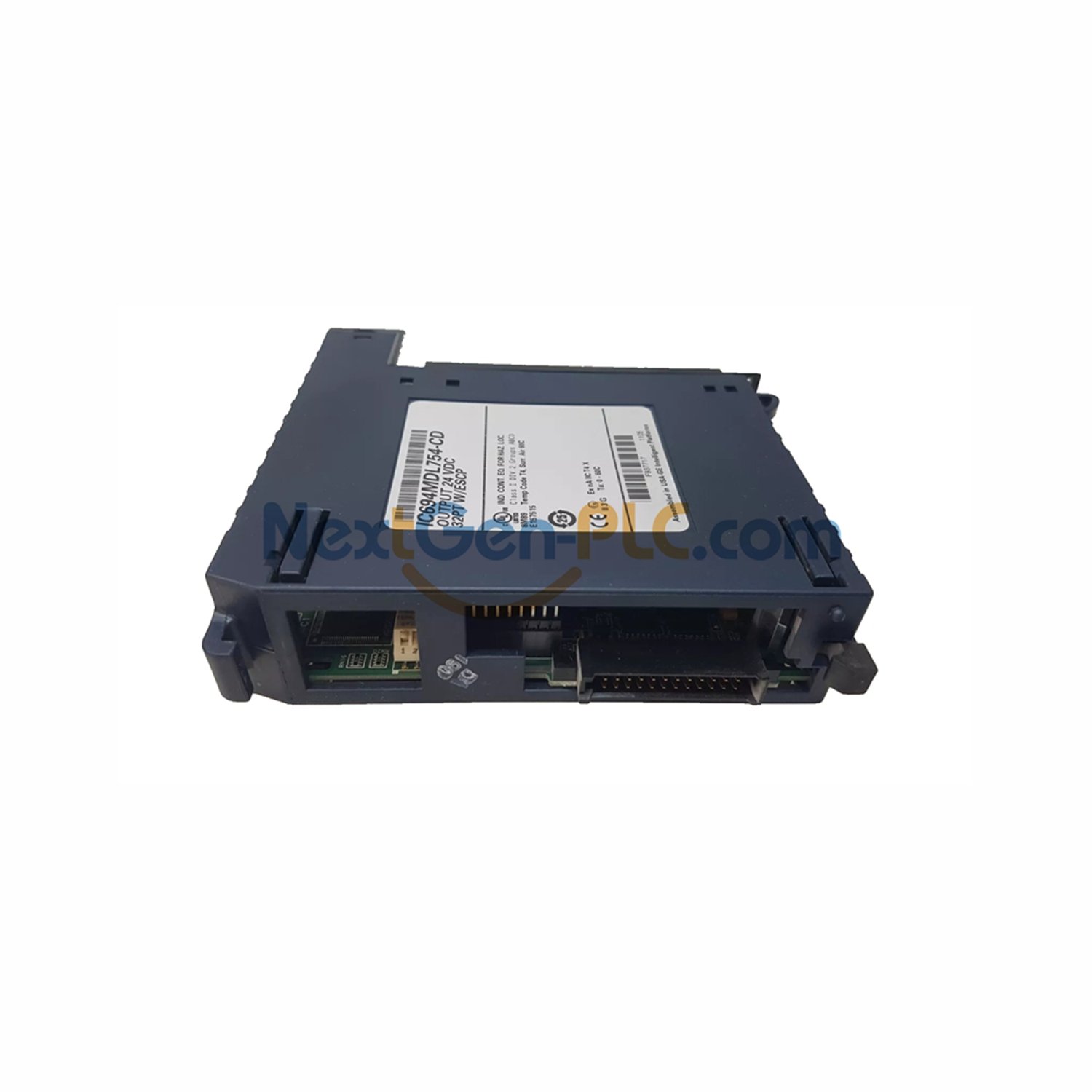

GE Fanuc IC694MDL752 High-Density DC Output Module
Quick Facts
| Operating Voltage | 5 VDC (TTL), 12/24 VDC |
| Output Channels | 32 (4 groups of 8) |
| Output Current | 25 mA per point (TTL), 0.5 A per point (12/24 VDC) |
| Group Current Limit | 3.0 A per group |
| Response Time | 0.5 ms |
| Inrush Current | 4.6 A (10 ms) |
| Backplane Current Draw | 260 mA maximum |
| LED Indicators | 32 (one per channel) |
Installation Guide
Mounts in any RX3i I/O slot (single-slot width)
Supports local and remote I/O station installation
Uses Fujitsu 24-pin connectors
Compatible with pre-wired cables IC694CBL327 and IC694CBL328
Extended Technical Data
Voltage Range: 4.75-5.25 VDC (TTL), 10.2-28.8 VDC (12/24 VDC)
On-State Voltage Drop: 0.24 VDC max
Off-State Leakage: 0.1 mA max
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Vibration Resistance: 2 g, 5–500 Hz
Compatibility
Works with GE Fanuc / Emerson RX3i CPUs
Supports TTL, 12 VDC, and 24 VDC loads in separate groups
Backward compatible with older automation setups
