Process Control Charts for Manufacturing Quality

Mastering Process Control Charts for Manufacturing Excellence

Process control charts serve as powerful statistical process control (SPC) tools that enable organizations to maintain operational consistency, minimize variation, and enhance product quality across multiple industries. These visual monitoring systems prove particularly valuable within Six Sigma frameworks and manufacturing environments where process stability directly impacts business outcomes.

The Six Sigma Connection

Six Sigma methodology relies on data-driven strategies to reduce defects and optimize processes. Control charts provide real-time process capability feedback, support evidence-based decision making, and identify improvement opportunities. Manufacturing operations leverage these tools to achieve superior product quality, reduce waste, and increase production yields.

Understanding Control Chart Fundamentals

Control charts graphically represent process behavior over time, effectively distinguishing between common cause variation (inherent process randomness) and special cause variation (atypical events requiring intervention). This distinction helps organizations maintain process stability while quickly addressing abnormal conditions.

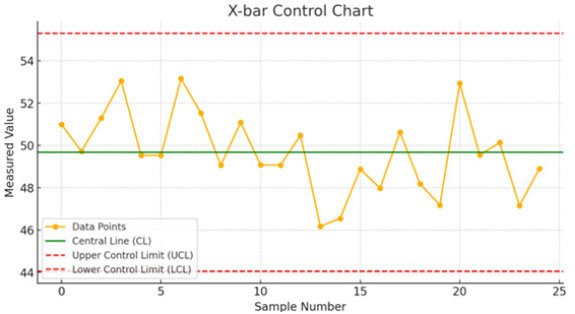

Figure 1: X-bar control chart demonstrates process variation patterns.

Control Chart Components Explained

These statistical tools incorporate several key elements: data points representing process measurements, a central line (CL) indicating the process mean, upper and lower control limits (UCL/LCL) defining acceptable variation ranges, and a time axis showing measurement sequence. Control limits typically establish at ±3 standard deviations from the mean to encompass natural process variation.

Selecting Appropriate Chart Types

Control charts fall into two primary categories: variable charts for continuous data and attribute charts for discrete data. Variable charts include X-bar/R charts (monitoring means and ranges), X-bar/S charts (tracking means and standard deviations), and I-MR charts (following individual values and moving ranges). Attribute charts encompass P charts (proportion defective), NP charts (number defective), C charts (defects per unit), and U charts (defects per unit with variable sample sizes).

Implementing Effective Process Monitoring

Control charts provide continuous process surveillance, alerting personnel to unusual conditions and helping identify trends, shifts, or patterns indicating process changes. This proactive approach focuses on defect prevention rather than detection, promoting process stability and predictability.

Control Chart Development Process

Successful implementation begins with process selection and characteristic identification. Organizations must collect sufficient baseline data, calculate statistical parameters including means and control limits, then plot values in time-sequence format. Analysis involves pattern recognition, signal detection, and variation assessment. When anomalies appear, teams should investigate root causes and implement corrective actions.

Interpreting Control Chart Signals

Stable processes display data points within control limits without non-random patterns. Out-of-control conditions occur when points exceed control limits or demonstrate systematic patterns like trends, cycles, or shifts. These signals indicate potential process issues requiring investigation and correction.

Advantages of Control Chart Implementation

• Early problem detection and prevention
• Enhanced process stability and capability
• Data-driven decision making support
• Reduced operational costs
• Continuous improvement facilitation

Implementation Challenges and Considerations

• Initial setup complexity and training requirements
• Potential for misinterpretation without proper education
• Historical data limitations
• Need for complementary quality tools

Practical Application Insights

From my experience in industrial automation, organizations that properly implement control charts typically achieve 15-25% reduction in process variation and significant quality improvement within six months. The most successful implementations combine control charts with other SPC tools and ensure adequate operator training.

Industry Implementation Scenario

Manufacturing facilities implementing control charts for critical process parameters often reduce scrap rates by 30-40% while improving overall equipment effectiveness (OEE) by 12-18%. The visual nature of control charts enables quick operator response to process deviations, minimizing quality issues and rework requirements.

Frequently Asked Questions

How often should control limits be recalculated?

Control limits should be reviewed quarterly or whenever significant process changes occur. However, established limits remain effective for stable processes over extended periods.

What’s the minimum sample size for effective control charts?

Most control charts require 20-25 subgroup samples to establish reliable control limits. Larger samples provide greater statistical confidence.

Can control charts detect process improvement?

Yes, control charts effectively demonstrate process improvements through reduced variation, shifted averages, or narrowed control limits.

How do control charts differ from run charts?

Control charts incorporate statistical control limits while run charts simply display data over time without statistical boundaries.

What software tools support control chart implementation?

Modern manufacturing execution systems (MES), statistical software packages, and industrial automation platforms typically include built-in control chart capabilities.
