Mastering Industrial Pressure Measurement: Avoiding Common Installation Errors
Understanding Pressure Fundamentals
Process industries rely heavily on accurate pressure measurements. Pumps, compressors and distillation columns all require precise monitoring. However, installation errors often lead to confusing readings. These include downstream pressure exceeding upstream values. This article explores common pressure measurement challenges and solutions.
Transmitter Elevation Considerations
Pressure transmitter placement significantly affects measurement accuracy. When located below tapping points, liquid-filled tubing creates excess pressure. Conversely, elevated transmitters in condensing service face different challenges. Condensate accumulation distorts readings unless proper drainage exists.

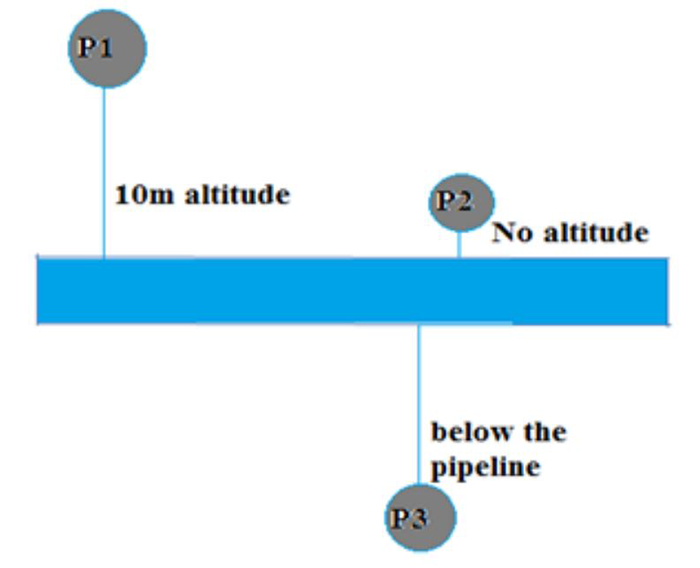

Figure 1: Three different pressure transmitters at different heights referenced to the pipeline.
Dynamic Pressure Complications
Fluid momentum frequently causes measurement errors. Pressure taps placed near nozzles capture both static and dynamic pressure. This results in abnormally high readings. Compressor knock-out drums and distillation columns often experience this issue.
Pipeline Geometry Impact
Elbow installations present particular challenges. Pressure sensors at pipeline bends detect additional dynamic pressure. This creates readings higher than upstream or downstream locations. Proper placement avoids these velocity head miscalculations.

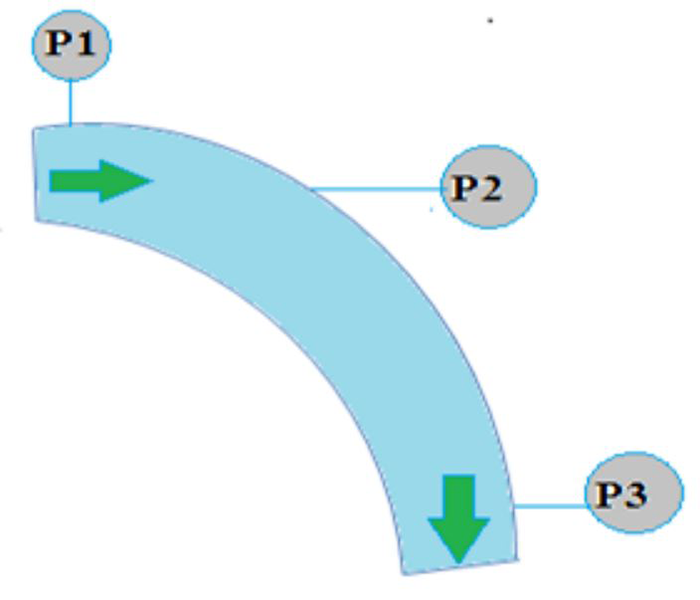

Figure 2: Pressure sensor placement around pipeline elbows affects readings.
Vessel vs Pipeline Installation
Pressure control requires direct vessel mounting. Installing transmitters on pipelines instead of tanks causes control instability. Nitrogen blanketing and pressure maintenance systems need accurate vessel pressure readings.

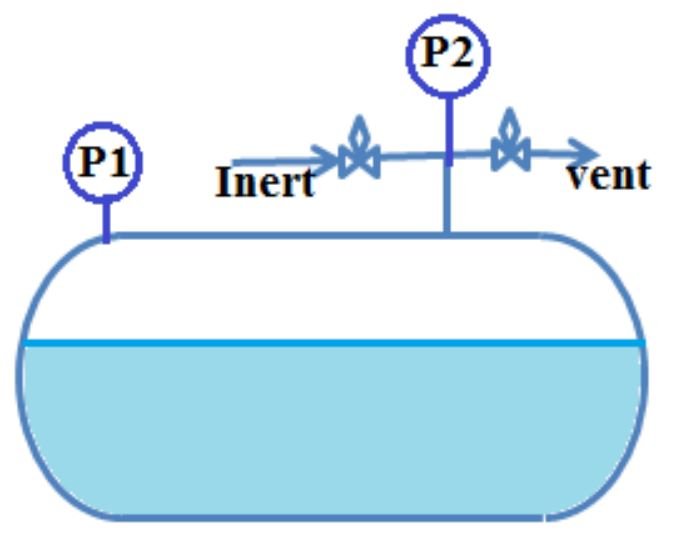

Figure 3: Proper pressure transmitter placement for vessel pressure control.
Flow Development Requirements
Fluid mechanics principles dictate sensor placement. Pressure sensors require fully developed flow conditions. The entrance length before measurement should equal ten pipe diameters. This ensures stable velocity profiles and accurate static pressure readings.
Maintenance and Contamination Issues
Process materials often compromise measurement accuracy. Heavy oils, slurries and coking services demand special consideration. Remote seal systems help but require careful maintenance. Regular flushing prevents material buildup and false readings.
Practical Application Example
Consider a crude distillation unit experiencing pressure anomalies. The pressure transmitter below the feed point shows higher readings than expected. Investigation reveals liquid head compensation wasn’t applied during calibration. After recalibration for wet leg conditions, readings normalize and control improves significantly.
Best Practice Recommendations
Always calibrate transmitters for specific service conditions. Install sensors away from elbows and fluid momentum zones. Use siphon tubes for high-temperature steam applications. Implement regular flushing schedules for challenging services. Mount vessel pressure sensors directly on the equipment. Verify installations during design phase to prevent common errors.
Frequently Asked Questions
Why does downstream pressure sometimes exceed upstream pressure?
This can occur due to improper transmitter elevation, fluid condensation, or Bernoulli effects in expanding pipelines.
How often should pressure transmitters be calibrated?
Calibration frequency depends on service conditions, but annual verification is recommended for critical applications.
What’s the minimum straight-run requirement before pressure taps?
Industry standard recommends 10 pipe diameters of straight pipe before pressure measurement points.
When should remote seal transmitters be used?
Remote seals are essential for corrosive, slurry, or coking services where direct fluid contact causes problems.
How does transmitter elevation affect readings?
Elevation differences create liquid head effects that must be compensated during calibration.
