Digital Optical DO Sensors for Process Control

Digital Optical Dissolved Oxygen Sensors: Revolutionizing Process Measurement

Analytical instrumentation plays a critical role in maintaining process safety, ensuring product quality, and optimizing production efficiency across multiple industries. Dissolved oxygen monitoring serves as a key parameter for aeration optimization, microbial condition tracking, regulatory compliance, and corrosion prevention in industrial equipment.

The Evolution of DO Measurement Technology

Recent advancements in optical sensing combined with digital communication protocols have transformed dissolved oxygen monitoring. Modern instruments now offer superior process control, reduced operational costs, and enhanced reliability compared to traditional measurement methods.

Limitations of Conventional Amperometric Sensors

Amperometric sensors have historically dominated industrial DO measurement applications. While proven effective, these conventional technologies present significant operational challenges related to maintenance frequency, calibration complexity, measurement accuracy, and data integration capabilities.

Figure 1: Amperometric sensors measure dissolved oxygen through electrochemical reactions across permeable membranes.

Operational Challenges with Traditional Sensors

• High Maintenance Demands: Amperometric sensors require regular electrolyte replenishment and membrane replacement due to fouling and physical damage risks. These maintenance activities consume significant personnel time and increase total ownership costs.
• Frequent Calibration Requirements: Sensor drift necessitates regular multi-point calibrations using zero-oxygen and known-concentration solutions. This process introduces potential for manual error and requires substantial time investment.
• Flow Dependency Issues: Conventional sensors consume oxygen during measurement, requiring minimum process flows to prevent localized oxygen depletion. This limitation challenges accuracy in low-flow or static conditions.
• Signal Stability Concerns: Extended polarization periods after maintenance and signal drift from membrane changes create measurement instability.
• Analog Signal Limitations: Traditional analog signals suffer from electromagnetic interference vulnerability and signal degradation over long distances while transmitting only single data points.

Optical Sensing Technology Advancements

Luminescence quenching optical sensors address traditional limitations through innovative measurement principles. This technology utilizes LED excitation of luminescent dye molecules, with oxygen concentration determined by measuring the quenching effect on emitted light characteristics.

Figure 2: Optical sensors use fluorescence quenching to measure dissolved oxygen with high accuracy.

Key Advantages of Optical DO Sensors

Modern optical technology eliminates oxygen consumption during measurement, enabling accurate readings in low-flow and no-flow conditions. These sensors require no electrolyte solutions and feature extended service intervals, with sensor caps typically lasting up to two years compared to monthly maintenance for amperometric systems.

Figure 3: The Rosemount 490A Dissolved Oxygen Sensor combines digital communication with advanced optical sensing.

Digital Communication Benefits

Modern optical DO instruments transmit measurement data digitally, eliminating electromagnetic interference concerns and signal degradation over long distances. Supported protocols like Modbus RTU enable multi-drop configurations, allowing multiple sensors to share a single transmitter such as the Rosemount 1058 digital process transmitter.

Wastewater Treatment Application

Aerobic aeration basins in municipal wastewater treatment require precise dissolved oxygen control to maintain microbial activity for organic waste conversion. Traditional amperometric sensors faced challenges with long wire runs, signal integrity, and frequent maintenance in these distributed control environments.

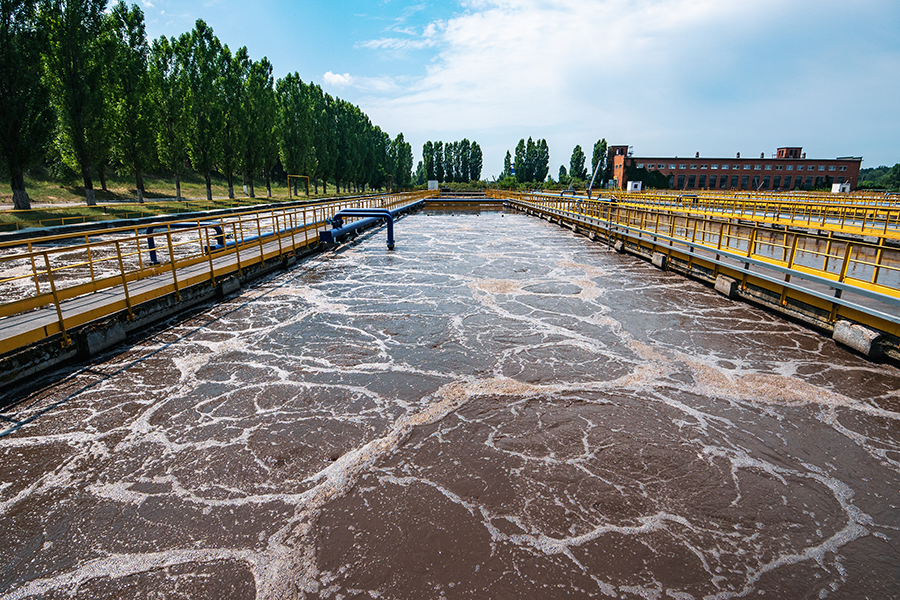

Figure 4: Aeration basins require careful DO control for effective wastewater treatment.

Operational Benefits in Wastewater

Digital optical DO sensors dramatically reduce calibration requirements from biweekly to annual intervals while enabling daisy-chained configurations that eliminate individual wiring loops. Their non-consumptive measurement principle prevents localized oxygen depletion concerns in low-flow aeration environments.

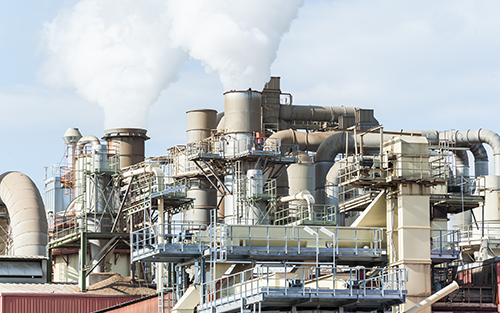

Steam Generation Optimization

Utility steam generation systems require precise DO control to prevent accelerated corrosion and pitting of metal components. Optical sensors provide reliable measurement in high-temperature, high-pressure environments with quick response to flow changes and transitions between wet and dry conditions.

Industry Perspective

From my experience in process instrumentation, facilities adopting digital optical DO sensors typically achieve 40-60% reduction in maintenance hours and 25-35% decrease in calibration-related costs. The technology’s reliability in challenging conditions significantly improves process efficiency while reducing total cost of ownership.

Implementation Considerations

Successful optical sensor deployment requires proper mounting orientation, periodic cap replacement, and initial calibration verification. However, these requirements represent substantial reductions compared to traditional sensor maintenance schedules while delivering superior measurement reliability.

Frequently Asked Questions

How long do optical sensor caps typically last?

Optical sensor caps generally provide 18-24 months of reliable service, significantly longer than the monthly maintenance required for amperometric membranes and electrolytes.

Can optical sensors measure in zero-flow conditions?

Yes, optical sensors don’t consume oxygen during measurement, making them ideal for static or low-flow applications where traditional sensors struggle with accuracy.

What digital protocols do modern DO sensors support?

Leading optical DO sensors typically support Modbus RTU, enabling multi-drop configurations and reduced wiring requirements through shared transmitter connections.

Are optical sensors suitable for high-temperature applications?

Modern optical sensors like the Rosemount 490A perform reliably in high-temperature utility applications, including steam generation systems with rapid condition changes.

How does digital communication improve signal integrity?

Digital signals eliminate electromagnetic interference concerns and prevent signal degradation over long distances, ensuring accurate measurement transmission to control systems.
