Mastering Cryogenic Challenges: Coriolis Flow Meters in Nitrogen Applications
The Critical Role of Nitrogen in Modern Industry
Nitrogen serves as a fundamental gas across multiple sectors. Electronics manufacturing relies on it for creating inert atmospheres. Food processing uses nitrogen for packaging and preservation. Additionally, energy and medical research applications demand high-purity nitrogen. However, its cryogenic nature presents unique measurement difficulties that require specialized solutions.
Understanding Nitrogen’s Physical Transformations
Nitrogen undergoes significant state changes under different conditions. At standard atmospheric pressure, it boils at -195.8°C. Even minor environmental fluctuations can cause rapid phase transitions. Consequently, the density varies dramatically between gaseous and liquid states. This volatility makes accurate measurement particularly challenging for traditional flow technologies.
| Physical State | Operating Conditions | Density Range (kg/m³) | Key Properties |
|---|---|---|---|
| Gaseous Nitrogen | 25°C, 1 atmosphere | ≈1.17 | Highly compressible, low density |
| Liquid Nitrogen | -196°C, 1 atmosphere | ≈808 | Cryogenic, high density |
| Supercritical State | >126.2 K, >3.39 MPa | 100-500 | Hybrid characteristics |
Overcoming Cryogenic Measurement Obstacles
Cryogenic nitrogen environments present multiple technical hurdles. Phase instability frequently occurs with slight pressure changes. Material contraction at extreme temperatures can compromise sensor integrity. Moreover, rapid density variations invalidate volumetric measurement principles. Therefore, mass-based measurement becomes essential for reliable operation.
Coriolis Technology: Superior Performance in Extreme Conditions
Coriolis mass flow meters demonstrate exceptional capability in cryogenic applications. Their direct mass measurement principle remains unaffected by fluid state changes. Furthermore, specialized construction materials maintain structural integrity at temperatures reaching -200°C. The absence of moving parts eliminates freezing risks common in mechanical meters.
Technical Advantages in Industrial Applications
Coriolis meters provide multiple benefits for nitrogen handling systems. They offer immunity to density and phase variations through direct mass measurement. Robust materials like 316L stainless steel ensure durability in cryogenic service. Integrated temperature monitoring allows real-time process verification. Additionally, high accuracy within ±0.2% supports precise custody transfer operations.
Implementation Considerations for Optimal Performance
Successful Coriolis meter installation requires careful planning. Proper thermal isolation prevents ice formation on sensor surfaces. Appropriate material selection ensures compatibility with cryogenic temperatures. Correct sizing matches flow range requirements with operational parameters. Moreover, suitable output selection enables seamless control system integration.
Industry Expert Perspective
The transition to direct mass measurement represents significant progress in cryogenic instrumentation. Traditional volumetric methods cannot accommodate nitrogen’s physical variability. Coriolis technology provides the stability needed for critical processes. As industrial applications become more demanding, this measurement approach offers reliable performance where other technologies fail.
Application Scenario: Liquid Nitrogen Transfer System

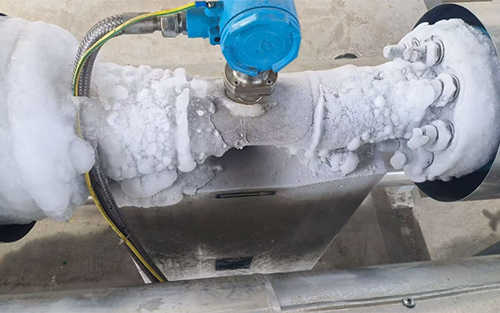

In typical LN₂ transfer operations, Coriolis meters monitor mass flow precisely. The system detects actual nitrogen quantity regardless of phase changes. When vaporization occurs due to heat ingress, measurement accuracy remains uncompromised. This capability ensures precise inventory management and prevents product loss during transfer operations.
Frequently Asked Questions
Why do traditional flow meters fail with cryogenic nitrogen?
Conventional meters rely on moving parts that freeze and density assumptions that become invalid during phase changes at extreme temperatures.
What makes Coriolis meters suitable for liquid nitrogen applications?
Their direct mass measurement principle, lack of moving parts, and cryogenic-rated materials maintain accuracy despite temperature extremes and state changes.
How accurate are Coriolis flow meters with nitrogen?
They typically achieve ±0.1-0.5% reading accuracy, making them suitable for custody transfer and precise process control applications.
What materials work best for cryogenic Coriolis meters?
316L stainless steel, Hastelloy, and titanium maintain structural integrity and measurement stability at temperatures down to -200°C.
Can Coriolis meters handle two-phase flow conditions?
Yes, they maintain mass measurement accuracy even during partial vaporization, unlike volumetric meters that require single-phase flow.
